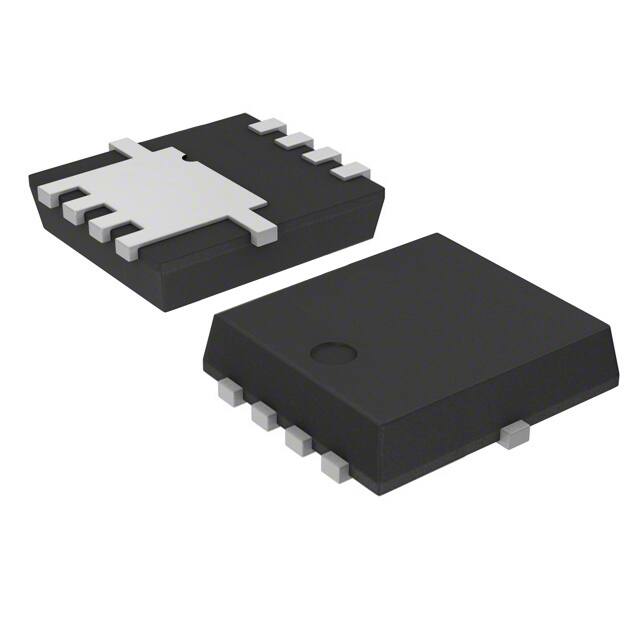

STTH4R06DEE-TR

Specifications

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Reach Svhc

No SVHC

Number Of Elements

1

Terminal Pozisyonu

DUAL

Peak Nonrepetitive Surge Current

60A

Recovery Time

100 ns

Montaj

Surface Mount

Tepe Reflow Sıcaklığı (°C)

260

Min. Çalışma Sıcaklığı

-65°C

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Forward Current

4A

Jesd30 Code

R-PDSO-N5

Output Currentmax

4A

Terminal Kaplaması

Matte Tin (Sn)

Peak Reverse Current

3μA

Kılıf / Paket

8-PowerVDFN

Fabrika Tedarik Süresi

8 Weeks

Radyasyon Dayanımı

No

Uzunluk

3.4mm

Tepe Reflow Süresi (maks. sn)

30

Ambalaj

Cut Tape (CT)

Case Connection

CATHODE

Voltage Forward Vf Max If

1.7V @ 4A

Operating Temperature Junction

150°C Max

Temel Parça No

STTH4R06

Montaj Tipi

Surface Mount

Forward Voltage

1.7V

Kurşunsuz

Lead Free

Max Reverse Leakage Current

30μA

Yükseklik

1mm

Diode Element Material

SILICON

Number Of Phases

1

Reverse Recovery Time

50 ns

Additional Feature

SOFT FACTOR IS 2

Average Rectified Current

4A

Max Surge Current

60A

Maks. Çalışma Sıcaklığı

150°C

Max Reverse Voltage Dc

600V

ECCN Kodu

EAR99
