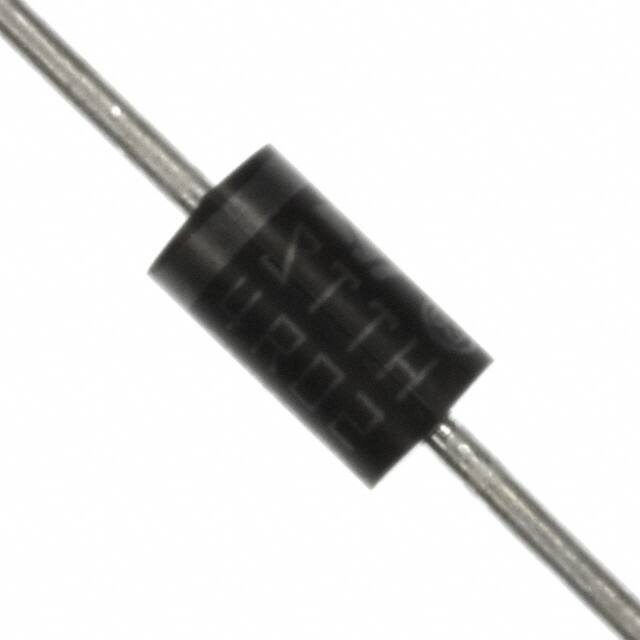

STTH4R02

Specifications

Montaj Tipi

Through Hole

Recovery Time

30 ns

Temel Parça No

STTH4R02

Parça Durumu

Obsolete

Number Of Elements

1

Operating Temperature Junction

175°C Max

RoHS Durumu

ROHS3 Compliant

Jesd30 Code

O-PALF-W2

Output Currentmax

4A

Diode Element Material

SILICON

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Min. Çalışma Sıcaklığı

-65°C

Reverse Voltage

200V

Montaj

Through Hole

HTS Kodu

8541.10.00.80

Maks. Çalışma Sıcaklığı

175°C

Max Reverse Voltage Dc

200V

Diode Type

Standard

ECCN Kodu

EAR99

Average Rectified Current

4A

Additional Feature

FREE WHEELING DIODE

Max Surge Current

70A

Terminal Formu

WIRE

Terminal Kaplaması

MATTE TIN

Number Of Phases

1

Peak Reverse Current

3μA

Kılıf / Paket

DO-201AB, DO-32, Axial

Reverse Recovery Time

30 ns

Qualification Status

Not Qualified

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

ULTRA FAST RECOVERY

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Ambalaj

Tape & Box (TB)

Voltage Forward Vf Max If

1.05V @ 4A

Case Connection

ISOLATED

Pin Sayısı

2

JESD-609 Kodu

e3

Element Configuration

Single

Current Reverse Leakage Vr

3μA @ 200V
