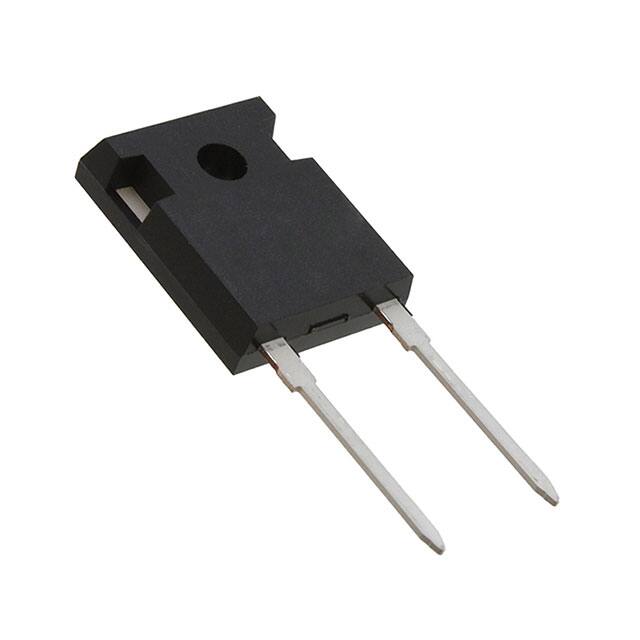

STTH30ACS06W

Specifications

Current Reverse Leakage Vr

5μA @ 600V

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Terminal Sayısı

2

Voltage Dc Reverse Vr Max

600V

Ambalaj

Tube

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Voltage Forward Vf Max If

2.4V @ 30A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

HIGH VOLTAGE ULTRA FAST RECOVERY

Reverse Currentmax

5μA

Number Of Phases

1

Operating Temperature Max

175°C

Reverse Recovery Time

55 ns

Kılıf / Paket

TO-247-2

Fabrika Tedarik Süresi

11 Weeks

Average Rectified Current

30A

Additional Feature

FREE WHEELING DIODE

Nonrep Pk Forward Currentmax

190A

Jedec95 Code

DO-247

Configuration

SINGLE

ECCN Kodu

EAR99

Diode Type

Standard

Max Reverse Voltage Dc

600V

Montaj

Through Hole

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Jesd30 Code

R-PSFM-T2

Diode Element Material

SILICON

RoHS Durumu

ROHS3 Compliant

Parça Durumu

Active

Operating Temperature Junction

175°C Max

Terminal Pozisyonu

SINGLE

Number Of Elements

1

Temel Parça No

STTH30

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole
