STTH2R02AFY

Specifications

Pin Sayısı

2

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Terminal Sayısı

2

Current Reverse Leakage Vr

800nA @ 200V

Element Configuration

Single

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

ULTRA FAST RECOVERY

Max Forward Surge Current Ifsm

50A

Voltage Forward Vf Max If

1.02V @ 2A

Ambalaj

Tape & Reel (TR)

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Terminal Formu

FLAT

Fabrika Tedarik Süresi

10 Weeks

Reverse Recovery Time

20 ns

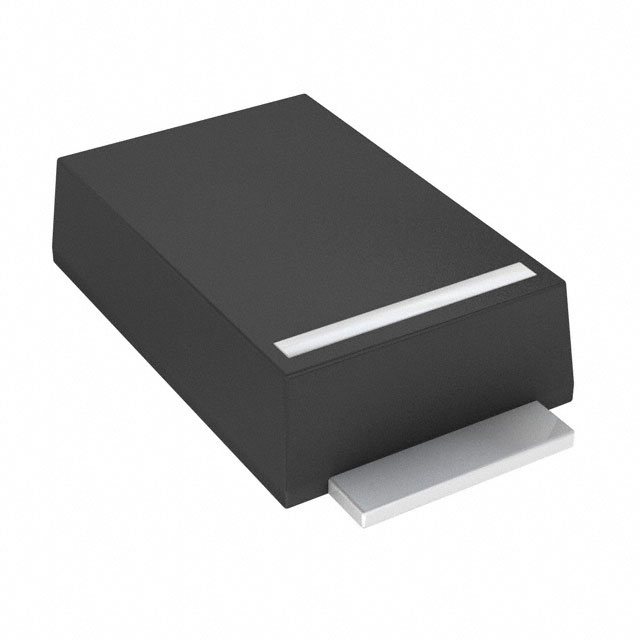

Kılıf / Paket

SOD-128

Peak Reverse Current

800nA

Number Of Phases

1

Max Repetitive Reverse Voltage Vrrm

200V

Diode Type

Standard

ECCN Kodu

EAR99

Max Reverse Voltage Dc

200V

Maks. Çalışma Sıcaklığı

175°C

Average Rectified Current

2A

Additional Feature

FREE WHEELING DIODE

Min. Çalışma Sıcaklığı

-40°C

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Montaj

Surface Mount

Diode Element Material

SILICON

Forward Current

2A

Seri

Automotive, AEC-Q101, ECOPACK®2

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Terminal Pozisyonu

DUAL

Operating Temperature Junction

-40°C~175°C

Number Of Elements

1

Reach Svhc

No SVHC

Parça Durumu

Active

RoHS Durumu

ROHS3 Compliant

Forward Voltage

1.02V

Montaj Tipi

Surface Mount

Peak Nonrepetitive Surge Current

50A
