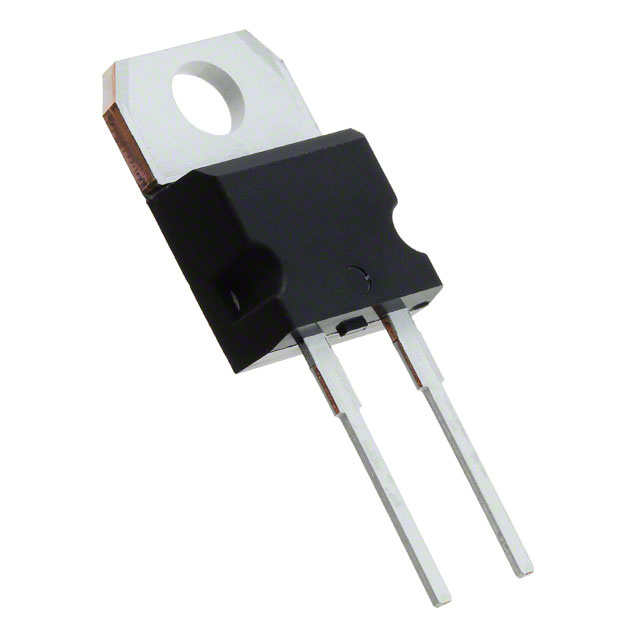

STTH15R06D

Specifications

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Forward Current

15A

Diode Element Material

SILICON

Reverse Voltage

600V

Montaj

Through Hole

Min. Çalışma Sıcaklığı

-65°C

Temel Parça No

STTH15R06

Voltage Rated Dc

600V

Contact Plating

Tin

Peak Nonrepetitive Surge Current

150A

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Forward Voltage

2.9V

Recovery Time

50 ns

RoHS Durumu

ROHS3 Compliant

Reach Svhc

No SVHC

Parça Durumu

Active

Operating Temperature Junction

175°C Max

Number Of Elements

1

Ambalaj

Tube

JESD-609 Kodu

e3

Voltage Forward Vf Max If

2.9V @ 15A

Case Connection

CATHODE

Applications

HIGH VOLTAGE ULTRA FAST RECOVERY

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Forward Surge Current Ifsm

30A

Output Current

15A

Current Reverse Leakage Vr

60μA @ 600V

Element Configuration

Single

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Terminal Sayısı

2

Pin Sayısı

2

Akım Değeri

15A

Radyasyon Dayanımı

No

Max Surge Current

120A

Additional Feature

FREE WHEELING DIODE

Average Rectified Current

15A

Maks. Çalışma Sıcaklığı

175°C

HTS Kodu

8541.10.00.80

ECCN Kodu

EAR99
