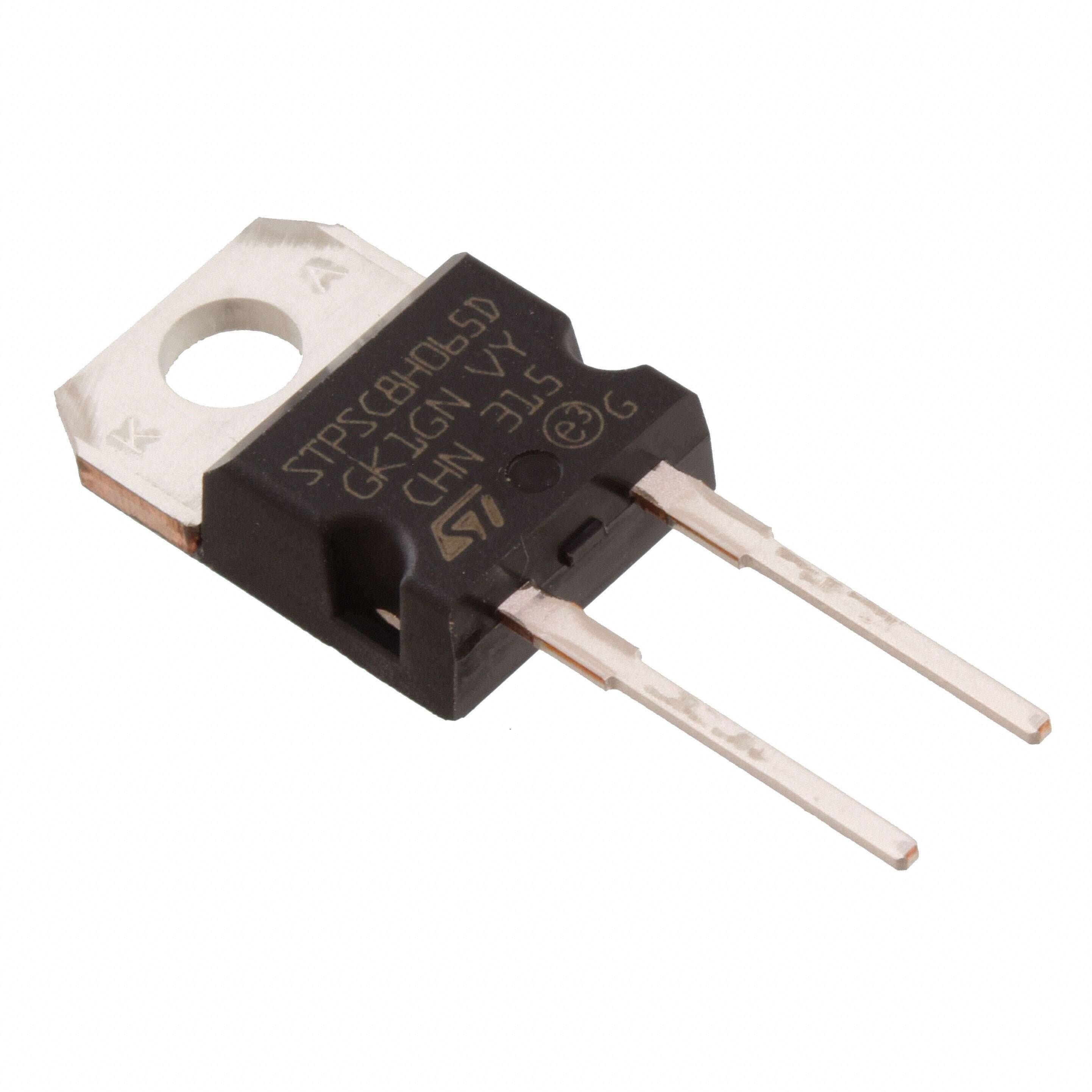

STPSC8H065D

Specifications

Applications

POWER

Pin Sayısı

2

Operating Temperature Junction

-40°C~175°C

Peak Reverse Current

80μA

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Average Rectified Current

8A

Max Forward Surge Current Ifsm

75A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Speed

No Recovery Time > 500mA (Io)

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Output Currentmax

8A

RoHS Durumu

ROHS3 Compliant

Element Configuration

Single

Temel Parça No

STPSC8H065

Kurşunsuz

Lead Free

REACH Uyumluluk Kodu

not_compliant

Fabrika Tedarik Süresi

14 Weeks

Max Reverse Voltage Dc

650V

Current Reverse Leakage Vr

80μA @ 650V

Number Of Phases

1

ECCN Kodu

EAR99

Reach Svhc

No SVHC

Reverse Recovery Time

0ns

Montaj Tipi

Through Hole

Voltage Forward Vf Max If

1.75V @ 8A

Kılıf / Paket

TO-220-2

Case Connection

CATHODE

Forward Current

8A

JESD-609 Kodu

e3

Montaj

Through Hole

Capacitance Vr F

414pF @ 0V 1MHz

Min. Çalışma Sıcaklığı

-40°C

Max Repetitive Reverse Voltage Vrrm

650V

Maks. Çalışma Sıcaklığı

175°C

Diode Type

Silicon Carbide Schottky

Ambalaj

Tube

Terminal Sayısı

2

Forward Voltage

1.75V

Terminal Kaplaması

Tin (Sn)
