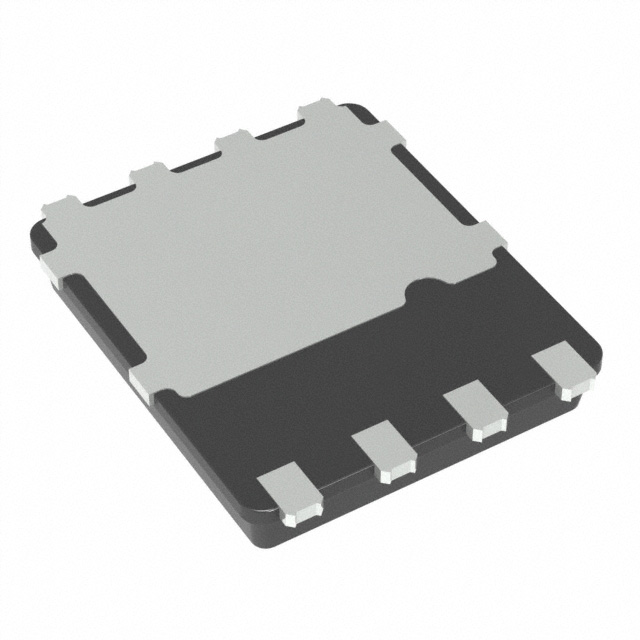

STPS3045DJFY-TR

Specifications

Configuration

SINGLE

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

RoHS Durumu

ROHS3 Compliant

Voltage Forward Vf Max If

680mV @ 30A

Terminal Formu

FLAT

Diode Type

Schottky

Operating Temperature Max

175°C

Case Connection

CATHODE

Additional Feature

FREE WHEELING DIODE

Nonrep Pk Forward Currentmax

380A

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Ambalaj

Tape & Reel (TR)

Seri

Automotive, AEC-Q101

Terminal Sayısı

5

Jesd30 Code

R-PDSO-F5

Rep Pk Reverse Voltagemax

45V

Fabrika Tedarik Süresi

6 Weeks

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Yüzey Montaj

YES

Reverse Currentmax

300μA

Diode Element Material

SILICON

Voltage Dc Reverse Vr Max

45V

Number Of Phases

1

Kılıf / Paket

8-PowerVDFN

Montaj Tipi

Surface Mount, Wettable Flank

Current Reverse Leakage Vr

300μA @ 45V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Parça Durumu

Active

Number Of Elements

1

Terminal Pozisyonu

DUAL

Current Average Rectified Io

30A

Operating Temperature Junction

-40°C~175°C

Temel Parça No

STPS3045
