STPS1H100AF

Specifications

Forward Current

1A

Pin Sayısı

2

Lifecycle Status

ACTIVE (Last Updated: 6 months ago)

Max Repetitive Reverse Voltage Vrrm

100V

Diode Element Material

SILICON

Temel Parça No

STPS1

Forward Voltage

860mV

Peak Reverse Current

4μA

Max Reverse Leakage Current

500μA

Montaj Tipi

Surface Mount

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Parça Durumu

Active

Max Reverse Voltage Dc

100V

Maks. Çalışma Sıcaklığı

175°C

Number Of Elements

1

Voltage Forward Vf Max If

770mV @ 1A

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Output Currentmax

1A

REACH Uyumluluk Kodu

not_compliant

Terminal Pozisyonu

DUAL

Element Configuration

Single

Terminal Sayısı

2

Terminal Kaplaması

Matte Tin (Sn) - annealed

Operating Temperature Junction

175°C Max

Montaj

Surface Mount

Qualification Status

Not Qualified

Min. Çalışma Sıcaklığı

-65°C

Peak Nonrepetitive Surge Current

50A

Ambalaj

Cut Tape (CT)

Fabrika Tedarik Süresi

8 Weeks

Kurşunsuz

Lead Free

Average Rectified Current

1A

HTS Kodu

8541.10.00.80

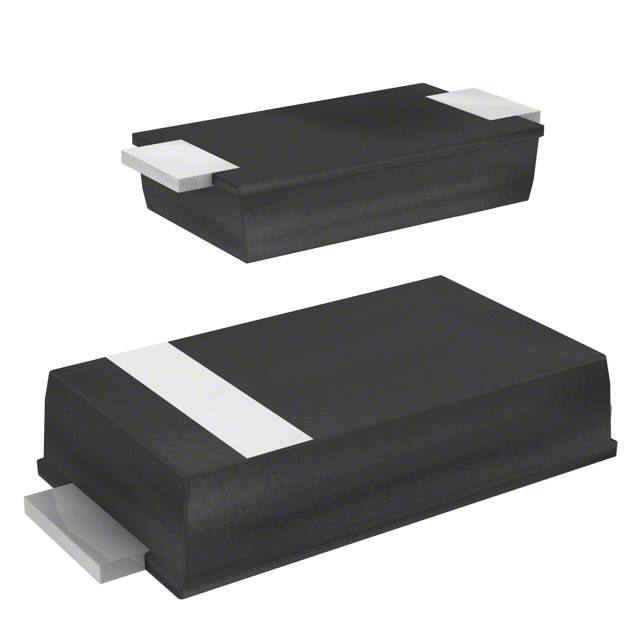

Kılıf / Paket

DO-221AC, SMA Flat Leads

Current Reverse Leakage Vr

4μA @ 100V

Pin Sayısı

2

Max Surge Current

50A

Diode Type

Schottky

RoHS Durumu

ROHS3 Compliant
