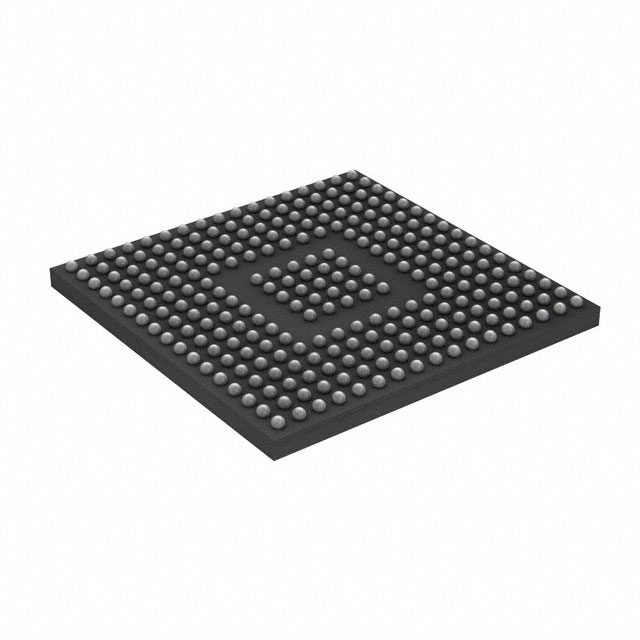

STM32H753XIH6

Specifications

Number Of Timerscounters

20

On Chip Program Rom Width

8

Nem Hassasiyeti (MSL)

3 (168 Hours)

Parça Durumu

Active

Number Of Usb Channels

2

Yükseklik

1.1mm

Fabrika Tedarik Süresi

12 Weeks

Data Converters

A/D 36x16b; D/A 2x12b

Bit Size

32

RoHS Durumu

Non-RoHS Compliant

Number Of Spi Channels

6

Memory Size

2MB

Temel Parça No

STM32H753

Number Of Ethernet Channels

1

Number Of Ios

168

Montaj Tipi

Surface Mount

Seri

STM32H7

Interface

CAN, Ethernet, I2C, I2S, IrDA, LIN, SMBus, SPI, UART, USART, USB

Number Of Adc Channels

36

Dma Channels

YES

Yüzey Montaj

YES

Terminal Sayısı

240

Voltage Supply Vccvdd

1.62V~3.6V

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Oscillator Type

Internal

Connectivity

CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Terminal Pozisyonu

BOTTOM

Number Of I2c Channels

4

Has Adc

YES

Number Of Ad Converters

3

Terminal Formu

BALL

Number Of Pwm Channels

8

Max Junction Temperature Tj

125°C

Ambient Temperature Range High

85°C

Data Bus Width

32b

Core Processor

ARM® Cortex®-M7

Peripherals

Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT

Ram Size

1M x 8

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED
