Volume pricing
- 1+ pcs$2.28
- 10+ pcs$2.15
- 100+ pcs$2.03
- 500+ pcs$1.91
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

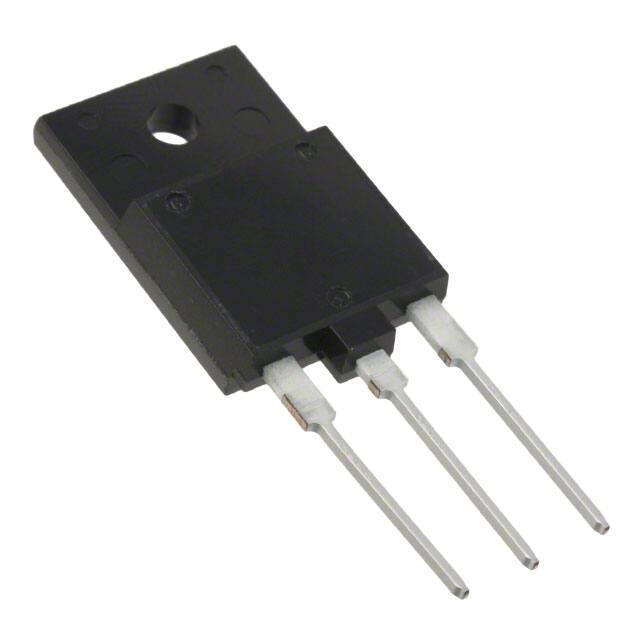

Specifications
- Vceon Max Vge Ic
- 2.2V @ 15V, 20A
- Montaj
- Through Hole
- Temel Parça No
- STGFW20
- Montaj Tipi
- Through Hole
- Ambalaj
- Tube
- Power Dissipation
- 52W
- Kılıf / Paket
- TO-3P-3 Full Pack
- Genişlik
- 5.7mm
- RoHS Durumu
- ROHS3 Compliant
- Radyasyon Dayanımı
- No
- Transistor Element Material
- SILICON
- Terminal Sayısı
- 3
- Pin Sayısı
- 2
- Max Collector Current
- 40A
- Parça Durumu
- Active
- Td Onoff25c
- 38ns/149ns
- Igbt Type
- Trench Field Stop
- Polaritychannel Type
- N-CHANNEL
- Lifecycle Status
- ACTIVE (Last Updated: 7 months ago)
- Gate Charge
- 116nC
- Uzunluk
- 15.7mm
- Collectoremitter Saturation Voltage
- 2.3V
- Switching Energy
- 200μJ (on), 130μJ (off)
- JESD-609 Kodu
- e3
- ECCN Kodu
- EAR99
- Çalışma Sıcaklığı
- -55°C~175°C TJ
- Turn Off Timenom Toff
- 173 ns
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Max Power Dissipation
- 52W
- Current Collector Pulsed Icm
- 80A
- Giriş Tipi
- Standard
- Transistor Application
- POWER CONTROL
- Test Conditions
- 400V, 20A, 15V
- Number Of Elements
- 1
- Fabrika Tedarik Süresi
- 32 Weeks
- Collector Emitter Voltage Vceo
- 600V
- Pin Sayısı
- 3
- Yükseklik
- 23.2mm
- Collectoremitter Breakdown Voltage
- 600V
- Case Connection
- ISOLATED
