Volume pricing
- 1+ pcs$3.71
- 10+ pcs$3.50
- 100+ pcs$3.30
- 500+ pcs$3.12
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications

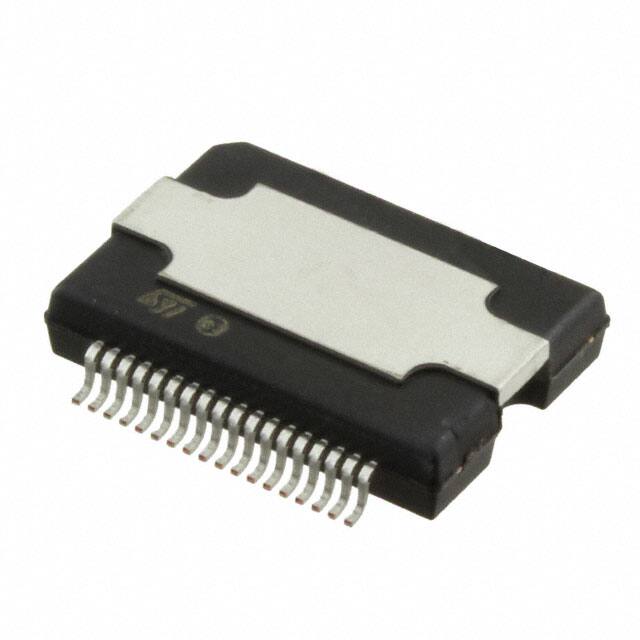

- Temel Parça No
- STA506
- Montaj Tipi
- Surface Mount
- Parça Durumu
- Obsolete
- Builtin Protections
- OVER CURRENT; THERMAL; UNDER VOLTAGE
- Besleme Gerilimi
- 10V~36V
- JESD-609 Kodu
- e3
- Turn Off Time
- 0.1 µs
- Pin Sayısı
- 36
- Tip
- Class D
- Uzunluk
- 15.9mm
- Terminal Kaplaması
- Matte Tin (Sn)
- Nominal Supply Current
- 50mA
- Montaj
- Surface Mount
- Kılıf / Paket
- PowerSO-36 Exposed Top Pad
- Output Peak Current Limitnom
- 6A
- Max Power Dissipation
- 50W
- Operating Supply Voltage
- 28V
- Turn On Time
- 0.1 µs
- Fonksiyon Sayısı
- 4
- ECCN Kodu
- EAR99
- Pin Sayısı
- 36
- Besleme Gerilimi
- 32V
- Terminal Sayısı
- 36
- Ambalaj
- Tape & Reel (TR)
- HTS Kodu
- 8542.39.00.01
- RoHS Durumu
- ROHS3 Compliant
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Genişlik
- 11mm
- Özellikler
- Digital Inputs, Short-Circuit and Thermal Protection, Standby
- Radyasyon Dayanımı
- No
- Maks. Oturma Yüksekliği
- 3.43mm
- Çalışma Sıcaklığı
- -40°C~90°C TA
- Terminal Formu
- GULL WING
- Output Current Flow Direction
- SOURCE SINK
- Çıkış Tipi
- 1-Channel (Mono) or 2-Channel (Stereo)
- Terminal Pozisyonu
- DUAL
- Supply Type
- Single
- Power Dissipation
- 50W
- Max Output Power X Channels Load
- 120W x 1 @ 4 Ω; 60W x 2 @ 8 Ω
- Output Power
- 60W
