SCT012H90G3AG

Specifications

Input Capacitance Ciss Max Vds

3880 pF @ 600 V

Çalışma Sıcaklığı

-55°C ~ 175°C (TJ)

Vgs Max

+18V, -5V

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Drain To Source Voltage Vdss

900 V

Kılıf / Paket

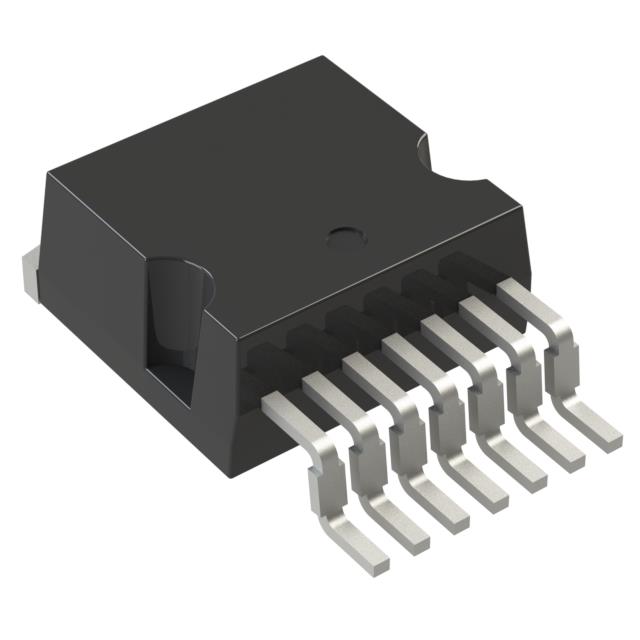

TO-263-8, D2PAK (7 Leads + Tab), TO-263CA

Fet Type

N-Channel

Rds On Max Id Vgs

15.8mOhm @ 60A, 18V

Vgsth Max Id

4.2V @ 10mA

Gate Charge Qg Max Vgs

138 nC @ 18 V

Current Continuous Drain Id25

110A (Tc)

Power Dissipation Max

625W (Tc)

Parça Durumu

Active

Drive Voltage Max Rds On Min Rds On

15V, 18V

Qualification

AEC-Q101

Tedarikçi Cihaz Paketi

H2PAK-7

Grade

Automotive
