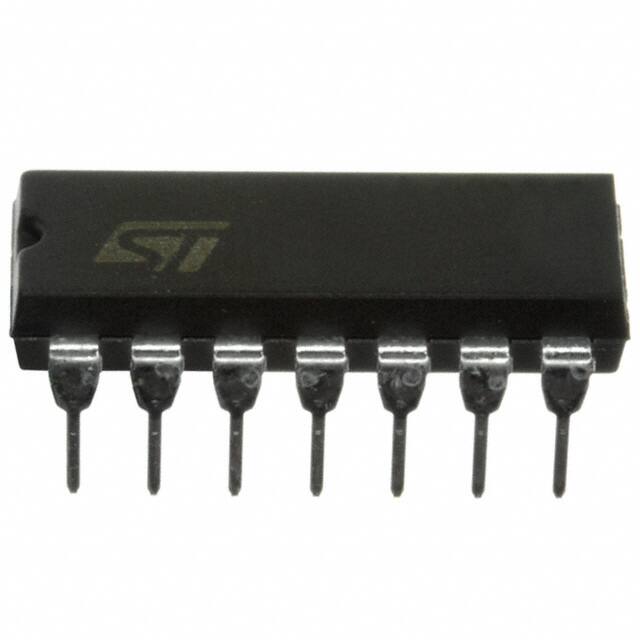

M74HC4016B1R

Specifications

Output

SEPARATE OUTPUT

Nem Hassasiyeti (MSL)

1 (Unlimited)

Switch Circuit

SPST - NO

Current Leakage Isoff Max

100nA

Supply Type

Single

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Operating Supply Current

8μA

Max Supply Current

8μA

Kılıf / Paket

14-DIP (0.279, 7.10mm)

3db Bandwidth

42MHz

Turn Off Delay Time

150 ns

Onstate Resistance Matchnom

16Ohm

Montaj

Through Hole

Terminal Kaplaması

Matte Tin (Sn)

RoHS Durumu

ROHS3 Compliant

Onstate Resistance Max

120Ohm

Terminal Sayısı

14

Voltage Supply Single V

2V~12V

Throw Configuration

SPST

Pin Sayısı

14

Parça Durumu

Obsolete

Switchon Timemax

20ns

Terminal Pozisyonu

DUAL

Max Supply Voltage

12V

Offstate Isolationnom

50 dB

Switching

BREAK-BEFORE-MAKE

JESD-609 Kodu

e3

Turn On Delay Time

100 ns

Montaj Tipi

Through Hole

Ambalaj

Tube

Channeltochannel Matching Ron

6 Ω

Multiplexerdemultiplexer Circuit

1:1

Normal Position

NO

Besleme Gerilimi

4.5V

Channel Capacitance Csoff Cdoff

1pF 5pF

Min Supply Voltage

2V

Fonksiyon Sayısı

4

Maks. Oturma Yüksekliği

5.1mm

Direnç

120Ohm

Pin Sayısı

14
