Volume pricing
- 1+ pcs$6.60
- 10+ pcs$6.23
- 100+ pcs$5.88
- 500+ pcs$5.54
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Besleme Gerilimi
- 3.3V 5V
- ECCN Kodu
- EAR99
- Tepe Reflow Süresi (maks. sn)
- 30
- Montaj
- Surface Mount
- Kurşunsuz
- Lead Free
- Function
- Driver - Fully Integrated, Control and Power Stage
- Temel Parça No
- L6472
- Terminal Formu
- GULL WING
- Power Supplies
- 3.3V
- Additional Feature
- ALSO OPERATES AT 5 VOLT
- Besleme Gerilimi
- 36V
- Terminal Kaplaması
- Matte Tin (Sn) - annealed
- Pin Sayısı
- 28
- RoHS Durumu
- ROHS3 Compliant
- Step Resolution
- 1 ~ 1/16
- Ambalaj
- Tape & Reel (TR)
- Nem Hassasiyeti (MSL)
- 3 (168 Hours)
- Radyasyon Dayanımı
- No

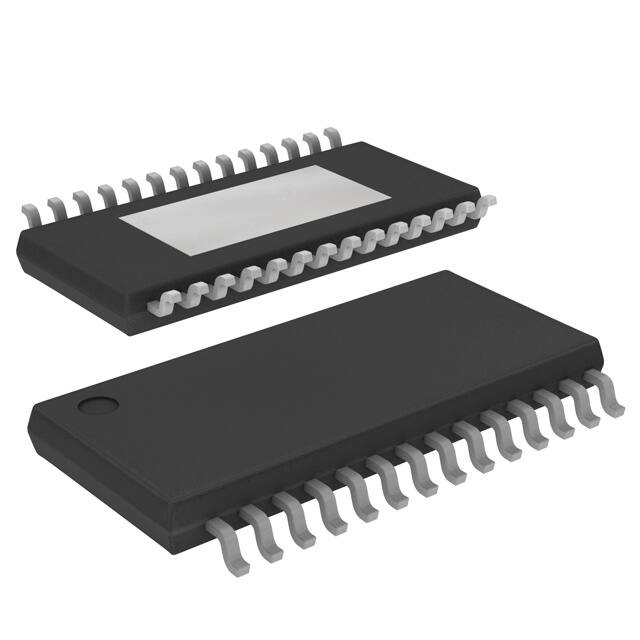

- Kılıf / Paket
- 28-TSSOP (0.173, 4.40mm Width) Exposed Pad
- Analog Ic Other Type
- STEPPER MOTOR CONTROLLER
- JESD-609 Kodu
- e3
- Lifecycle Status
- ACTIVE (Last Updated: 7 months ago)
- Supply Voltagemin Vsup
- 8V
- Terminal Adımı
- 0.65mm
- Supply Currentmax Isup
- 0.65mA
- Çalışma Sıcaklığı
- -40°C~150°C TJ
- Tepe Reflow Sıcaklığı (°C)
- 260
- Number Of Outputs
- 1
- Terminal Pozisyonu
- DUAL
- Uzunluk
- 9.7mm
- Applications
- General Purpose
- Interface
- SPI
- Seri
- STSPIN L64
- Terminal Sayısı
- 28
- Output Voltage
- 45V
- Montaj Tipi
- Surface Mount
- Output Configuration
- Half Bridge (4)
- Parça Durumu
- Active
- Voltage Load
- 8V~45V
- Motor Type Stepper
- Bipolar
