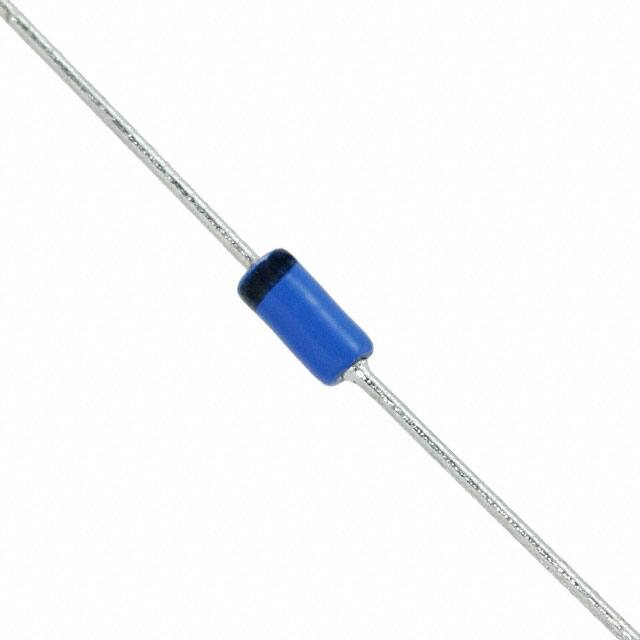

BAT46

Specifications

Power Dissipation Max

0.15W

Fabrika Tedarik Süresi

15 Weeks

Number Of Elements

1

RoHS Durumu

ROHS3 Compliant

Forward Voltage

1V

Kurşunsuz

Lead Free

Terminal Formu

WIRE

Output Current

150mA

HTS Kodu

8541.10.00.70

Weight

4.535924g

Peak Reverse Current

5μA

Voltage Forward Vf Max If

450mV @ 10mA

Max Reverse Leakage Current

5μA

Maks. Çalışma Sıcaklığı

125°C

Akım Değeri

150mA

JESD-609 Kodu

e3

Reach Svhc

No SVHC

Uzunluk

4.5mm

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Terminal Sayısı

2

Max Reverse Voltage Dc

100V

Pin Sayısı

2

Voltage Rated Dc

100V

Parça Durumu

Active

Temel Parça No

BAT46

Average Rectified Current

150mA

Diode Element Material

SILICON

Montaj

Through Hole

Polarity

Standard

Max Repetitive Reverse Voltage Vrrm

100V

ECCN Kodu

EAR99

Speed

Small Signal =< 200mA (Io), Any Speed

Element Configuration

Single

Kapasitans

10pF

Max Forward Surge Current Ifsm

1A

Operating Temperature Junction

-65°C~125°C

Kılıf / Paket

DO-204AH, DO-35, Axial

Nem Hassasiyeti (MSL)

1 (Unlimited)

Peak Nonrepetitive Surge Current

750mA

Diode Type

Schottky
