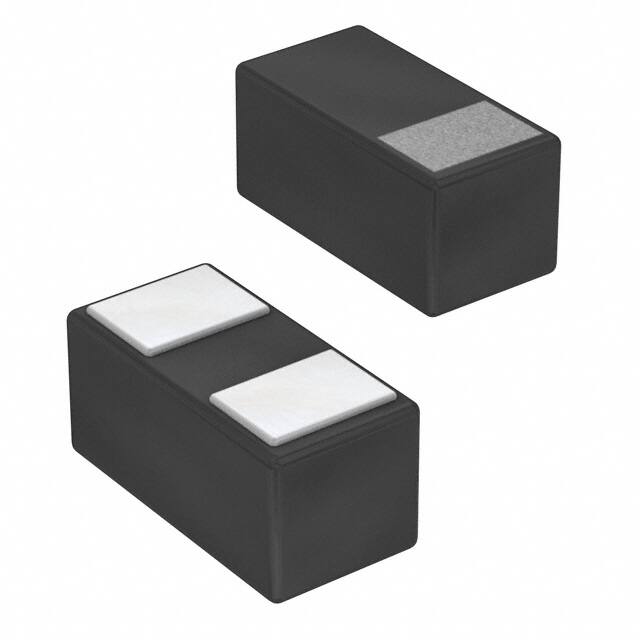

BAT30F4

Specifications

Terminal Formu

NO LEAD

Kurşunsuz

Lead Free

Kapasitans

10pF

Speed

Fast Recovery =< 500ns, > 200mA (Io)

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

15 Weeks

Element Configuration

Single

Manufacturer Package Identifier

BAT30F4

Output Currentmax

0.3A

RoHS Durumu

ROHS3 Compliant

Forward Voltage

310mV

Case Code Metric

0201

Number Of Elements

1

Peak Nonrepetitive Surge Current

4A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kılıf / Paket

0201 (0603 Metric)

Operating Temperature Junction

-30°C~85°C

Diode Type

Schottky

Voltage Forward Vf Max If

310mV @ 10mA

Peak Reverse Current

50μA

Maks. Çalışma Sıcaklığı

85°C

Reverse Voltage

30V

Max Forward Surge Current Ifsm

4A

Max Junction Temperature Tj

150°C

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Terminal Sayısı

2

Ambalaj

Cut Tape (CT)

Max Reverse Voltage Dc

30V

Pin Sayısı

2

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Contact Plating

Tin

Terminal Pozisyonu

BOTTOM

Reach Svhc

No SVHC

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Yükseklik

320μm

Current Reverse Leakage Vr

50μA @ 30V

Montaj

Surface Mount

Diode Element Material

SILICON

Montaj Tipi

Surface Mount

Min. Çalışma Sıcaklığı

-40°C
