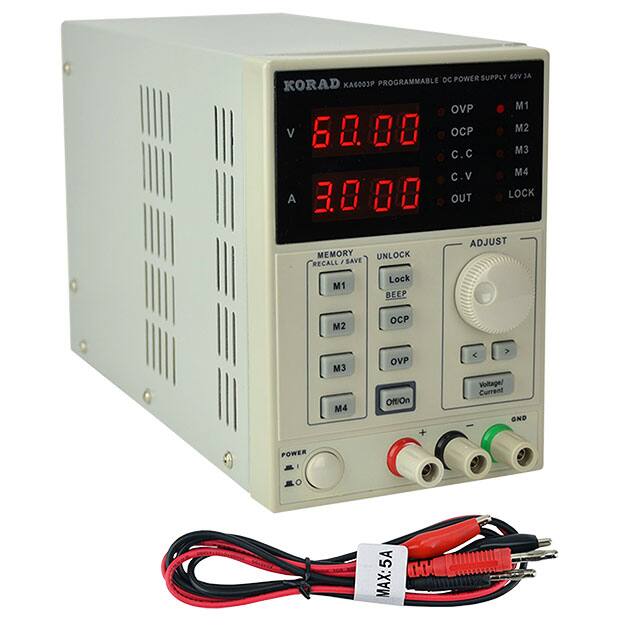

KA6003P

Specifications

Fabrika Tedarik Süresi

14 Weeks

Voltage Regulation Load

0.01% + 2mV

Voltage Regulation Line

0.01% + 3mV

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Regulation Line

0.1% + 3mA

Çıkış Gerilimi

0V~60VDC

Boyut / Ölçü

10.240Lx6.142W x 4.331 H 260.00mmx156.00mmx110.00mm

Seri

Korad

Parça Durumu

Active

Number Of Characters

4 (2)

Accuracy Voltmeter Ammeter

0.5% + 300mV; 0.5% + 10mA

Besleme Gerilimi

110V~220VAC

Ripple

1mV rms, 3mV rms

Tip

Bench (AC to DC)

Özellikler

Adjustable or Fixed Selection Switch, Programmable, Regulated, RS-232, USB Interface

Display Type

LED

RoHS Durumu

RoHS Compliant

Current Regulation Load

0.1% + 5mA

Number Of Outputs

1
