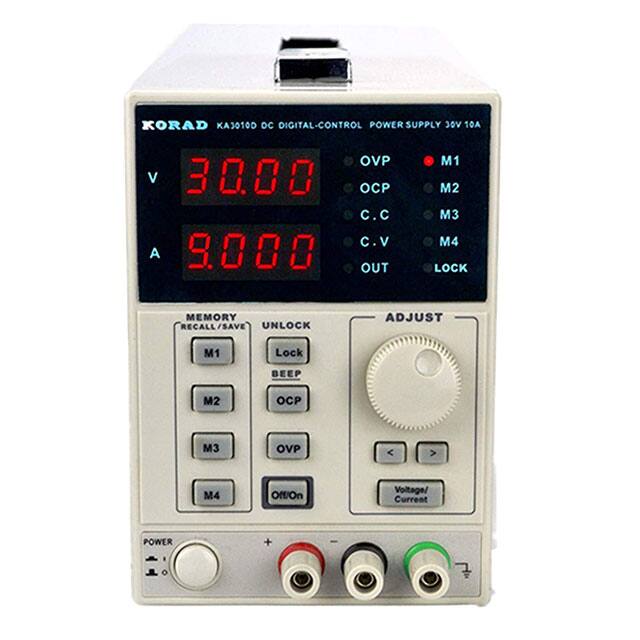

KA3010P

Specifications

Display Type

LED

RoHS Durumu

RoHS Compliant

Tip

Bench (AC to DC)

Accuracy Voltmeter Ammeter

0.5% + 20mV; 0.5% + 20mA

Parça Durumu

Active

Fabrika Tedarik Süresi

14 Weeks

Çıkış Gerilimi

0V~30VDC

Number Of Characters

4 (2)

Number Of Outputs

1

Seri

Korad

Boyut / Ölçü

10.240Lx6.142W x 4.331 H 260.00mmx156.00mmx110.00mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Regulation Load

0.1% + 20mA

Current Regulation Line

0.1% + 3mA

Voltage Regulation Line

0.01% + 3mV

Besleme Gerilimi

110V~220VAC

Ripple

2mV rms, 5mV rms

Özellikler

Adjustable or Fixed Selection Switch, Programmable, Regulated, RS-232, USB Interface

Voltage Regulation Load

0.01% + 3mV
