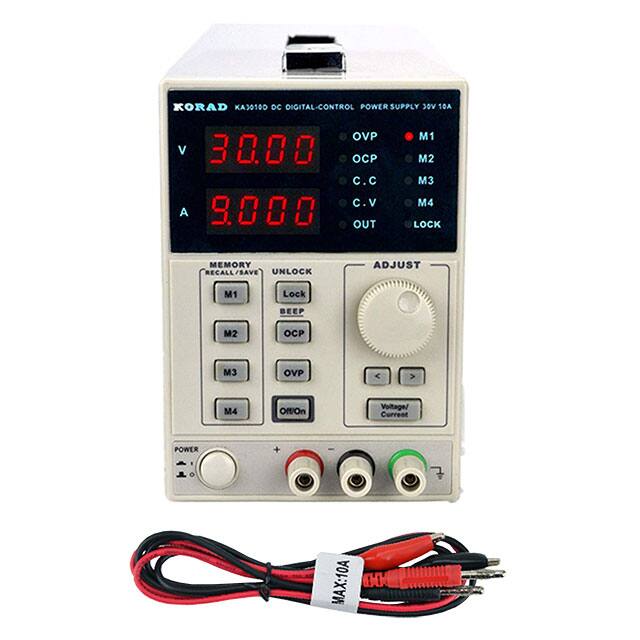

KA3010D

Specifications

Current Regulation Load

0.1% + 20mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

Korad

Boyut / Ölçü

10.240Lx6.142W x 4.331 H 260.00mmx156.00mmx110.00mm

Voltage Regulation Line

0.01% + 3mV

Current Regulation Line

0.1% + 3mA

Besleme Gerilimi

110V~220VAC

Özellikler

Adjustable or Fixed Selection Switch, Programmable, Regulated, RS-232, USB Interface

Voltage Regulation Load

0.01% + 3mV

Ripple

2mV rms, 5mV rms

Tip

Bench (AC to DC)

RoHS Durumu

RoHS Compliant

Display Type

LED

Number Of Characters

4 (2)

Çıkış Gerilimi

0V~30VDC

Fabrika Tedarik Süresi

14 Weeks

Accuracy Voltmeter Ammeter

0.5% + 20mV; 0.5% + 20mA

Parça Durumu

Active

Number Of Outputs

1
