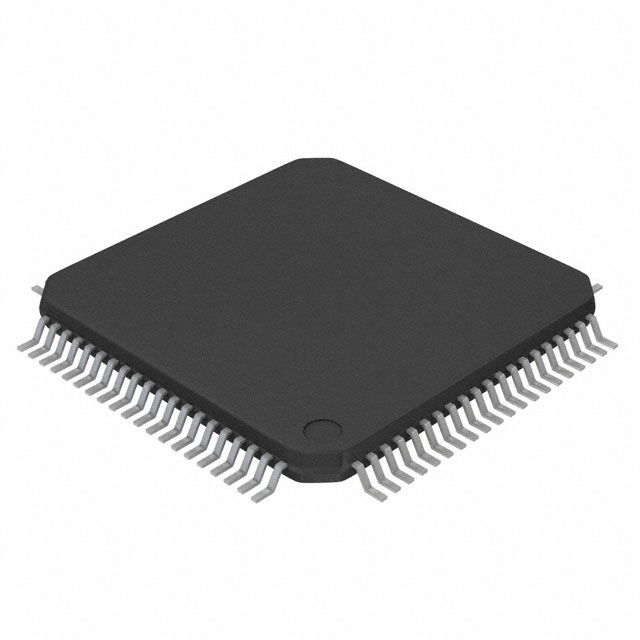

SIM3U167-B-GQ

Specifications

Yayın Yılı

2000

Max Power Dissipation

500mW

Core Processor

ARM® Cortex®-M3

Terminal Sayısı

80

Pin Sayısı

80

Terminal Pozisyonu

QUAD

Core Architecture

ARM

Besleme Gerilimi

3V

Frekans

80MHz

Fabrika Tedarik Süresi

6 Weeks

Number Of Usb Channels

1

Number Of Spi Channels

3

RoHS Durumu

RoHS Compliant

Oscillator Type

Internal

Program Memory Size

256KB 256K x 8

Yüzey Montaj

YES

Number Of Pwm Channels

2

Yükseklik

1.05mm

Uzunluk

12mm

Data Bus Width

32b

Bit Size

32

Terminal Formu

GULL WING

Connectivity

EBI/EMI, I2C, IrDA, SmartCard, SPI, UART/USART, USB

Seri

SiM3U1xx

Kılıf / Paket

80-TQFP

Memory Size

256kB

Nem Hassasiyeti (MSL)

2 (1 Year)

Ambalaj

Tray

Parça Durumu

Not For New Designs

Program Memory Type

FLASH

Genişlik

12mm

Terminal Adımı

0.5mm

Ram Size

32K x 8

Peripherals

Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT

Watchdog Timers

Yes

Number Of Ios

65

Montaj Tipi

Surface Mount

Upsucsperipheral Ics Type

MICROCONTROLLER, RISC

Voltage Supply Vccvdd

1.8V~3.6V

Data Converters

A/D 32x12b; D/A 2x10b
