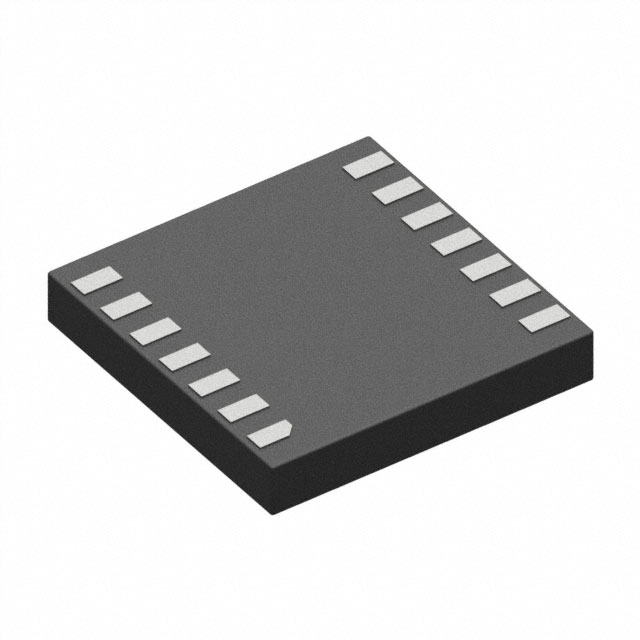

SI8275BBD-IM1

Specifications

Bridge Type

Half Bridge

Seri

Automotive, AEC-Q100

Onay Kuruluşu

CQC, CSA, UL, VDE

Voltage Isolation

2500Vrms

Output Current

1.8 A, 4 A

REACH Uyumluluk Kodu

compliant

Fabrika Tedarik Süresi

8 Weeks

High And Low Sides Dependency

Independent

Kılıf / Paket

14-VDFN

Rise Fall Time Typ

10.5ns 13.3ns

Propagation Delay Tplh Tphl Max

75ns, 75ns

Nem Hassasiyeti (MSL)

6 (Time on Label)

Time Delay

75ns

Polarity

Inverting

Paket

Tube

Temel Ürün No

SI8275

RoHS Durumu

RoHS Compliant

Besleme Gerilimi

5.5 V, 30V

Çalışma Sıcaklığı

-40°C~125°C

Rise Time

16ns

Current Output High Low

1.8A 4A

Pin Sayısı

14

Tedarikçi Cihaz Paketi

14-QFN (5x5)

Number Of Outputs

1

Parça Durumu

Active

Ürün Durumu

Active

Logic Type

TTL

Analog Ic Other Type

ANALOG CIRCUIT

Current Peak Output

4A

Voltage Output Supply

4.2V~30V

Common Mode Transient Immunity Min

200kV/μs

Technology

RF Coupling

Number Of Channels

2

Package Type

QFN

Montaj Tipi

Surface Mount

Topology

Isolated Gate Driver

Üretici Parça No

78205111002

Pulse Width Distortion Max

8ns

Number Of Drivers

2
