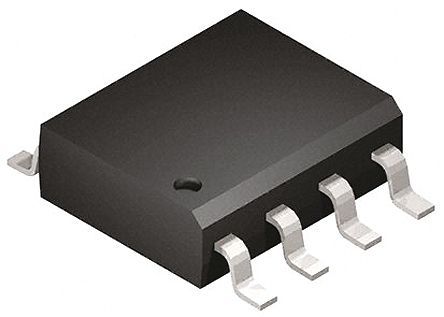

SI8261BCA-C-IS

Specifications

Parça Durumu

Obsolete

Kılıf / Paket

SOIC

Uzunluk

5mm

Current Peak Output

4A

Pulse Width Distortion Max

10ns Typ

Rise Fall Time Typ

5.5ns 8.5ns

Technology

Capacitive Coupling

Voltage Forward Vf Typ

2.8V Max

Temperature Coefficient

±25ppm/°C

Genişlik

5mm

RoHS Durumu

RoHS Compliant

Onay Kuruluşu

CQC, CSA, UR, VDE

Composition

Metal Film

Ürün Durumu

Obsolete

Paket

Tube

Failure Rate

S (0.001%)

Çalışma Sıcaklığı

-40°C~125°C

Number Of Channels

1

Max Power Dissipation

300mW

Max Supply Voltage

30V

Fabrika Tedarik Süresi

6 Weeks

Pin Sayısı

8

Seri

Automotive, AEC-Q100

Common Mode Transient Immunity Min

35kV/μs

Current Dc Forward If Max

30 mA

Pulse Width Distortion Pwd

10 ns

Propagation Delay

50 ns

Montaj

Surface Mount

Voltage Output Supply

13.5V~30V

Max Output Current

4A

Güç (Watt)

0.125W, 1/8W

Özellikler

Military, Moisture Resistant, Weldable

Min Supply Voltage

5V

Current Output High Low

500mA, 1.2A

Direnç

34.4 Ohms

Propagation Delay Tplh Tphl Max

60ns, 50ns

Reach Svhc

Unknown

Terminal Sayısı

2

Yayın Yılı

1997

Tolerans

±0.1%
