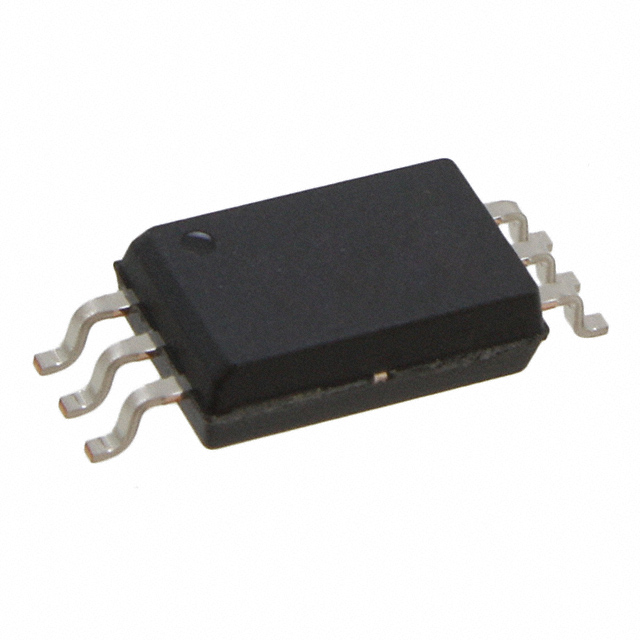

SI8261BBD-C-ISR

Specifications

Onay Kuruluşu

CQC, CSA, UR, VDE

RoHS Durumu

RoHS Compliant

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Parça Durumu

Active

Pulse Width Distortion Max

28ns

Pulse Width Distortion Pwd

28 ns

Qualification

AEC-Q100

Pin Sayısı

6

Propagation Delay Max

77 ns

Seri

Automotive, AEC-Q100

Number Of Channels

1

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Fabrika Tedarik Süresi

8 Weeks

RoHS

Details

Montaj

Surface Mount

Maks. Çalışma Sıcaklığı

+ 125 C

Fabrika Paket Adedi

1000

Propagation Delay

50 ns

Yayın Yılı

2014

Propagation Delay Tplh Tphl Max

60ns, 50ns

Interface Ic Type

BUFFER OR INVERTER BASED MOSFET DRIVER

Pd Power Dissipation

300 mW

Paket

Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;

Ürün Durumu

Active

Voltage Forward Vf Typ

2.8V Max

Kılıf / Paket

6-SOIC (0.295, 7.50mm Width)

Rise Fall Time Typ

5.5ns 8.5ns

Montaj Stili

SMD/SMT

Current Peak Output

4A

Current Dc Forward If Max

30 mA

Common Mode Transient Immunity Min

35kV/μs

Temel Ürün No

SI8261

Max Supply Voltage

30V

Max Power Dissipation

300mW

Isolation Voltage

6.5 kVrms

Çalışma Sıcaklığı

-40°C~125°C

Current Output High Low

500mA 1.2A

Max Output Current

4A

Supply Voltagemin

5 V

Min Supply Voltage

5V
