SI8035AA-B-IU

Specifications

Shutdown

Shutdown

Channel Type

Unidirectional

Voltage Isolation

1000Vrms

Giriş Tipi

Schmitt Trigger

Tedarikçi Cihaz Paketi

16-QSOP

Nem Hassasiyeti (MSL)

2A (4 Weeks)

Isolation Type

Capacitive Coupling

Terminal Sayısı

16

Polarity

Unidirectional

Supply Voltagemax Vsup

5.5V

Rise Fall Time Typ

2.5ns 2.5ns

Fabrika Paket Adedi

96

Paket

Tube

Yüzey Montaj

YES

Pulse Width

100 ns

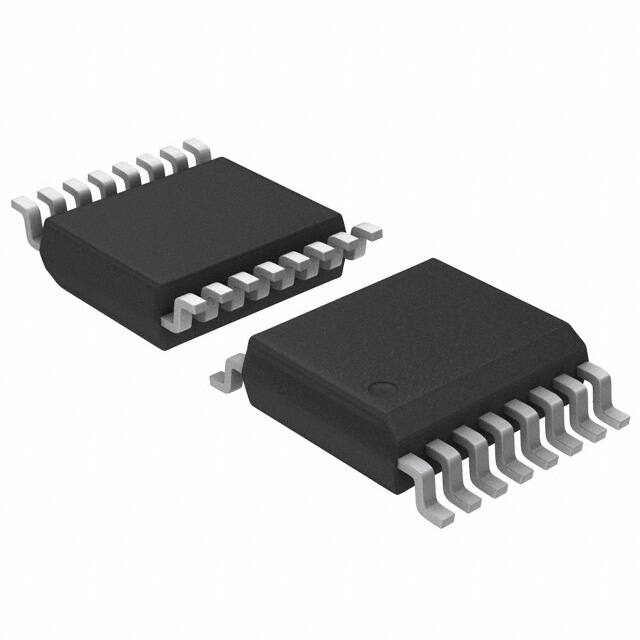

Kılıf / Paket

16-SSOP (0.154, 3.90mm Width)

Maks. Çalışma Sıcaklığı

+ 125 C

Reverse Channels

0 Channel

Fonksiyon Sayısı

3

Propagation Delay Tplh Tphl Max

65ns, 65ns

Besleme Gerilimi

3.15V~5.5V

Montaj Tipi

Surface Mount

Pulse Width Distortion

30 ns

Protocols Supported

General Purpose

Temel Ürün No

SI8035

Common Mode Transient Immunity Min

35kV/μs

Tip

General Purpose

Technology

Capacitive Coupling

Development Kit

si80xxiso-kit

Propagation Delay

65 ns

Moisture Sensitive

Yes

Terminal Pozisyonu

DUAL

Çıkış Tipi

CMOS

Pulse Width Distortion Max

30ns

Supply Voltagemin

3.15 V

Forward Channels

3 Channel

Ürün Durumu

Active

Maximum Fall Time

4 ns

Maximum Rise Time

4 ns

Isolated Power

No
