SI1032-B-GM3

Specifications

Memory Size

32kB Flash 8.5kB RAM

Ambalaj

Tray

Programming Voltage

3V

Nem Hassasiyeti (MSL)

3 (168 Hours)

Current Transmitting

85mA

Serial Interfaces

I2C, SPI, UART

Yayın Yılı

2016

Modulation

FSK, GFSK, OOK

Core Architecture

8051

Montaj Tipi

Surface Mount

Çalışma Sıcaklığı

-40°C~85°C

Watchdog Timers

Yes

Parça Durumu

Not For New Designs

Data Rate Max

256kbps

Ram Size

8.3kB

Besleme Gerilimi

1.8V~3.8V

Kılıf / Paket

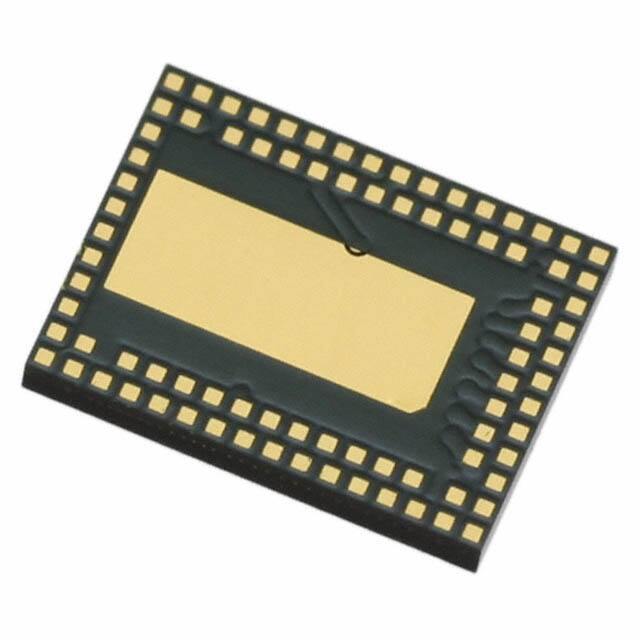

85-VFLGA Exposed Pad

Frekans

240MHz~960MHz

Rf Familystandard

General ISM < 1GHz

Sensitivity Dbm

-121 dBm

Tip

TxRx + MCU

Interface

I2C, SMBus, SPI, UART

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Number Of Programmable Io

53

Current Receiving

18.5mA

Power Output

20dBm Max

Protocol

EZRadioPro

Number Of Timerscounters

4

RoHS Durumu

RoHS Compliant

Data Bus Width

8b

Memory Types

FLASH

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Kurşunsuz Kodu

yes
