Request a quote for pricing
Priced by quantity and lead time.
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

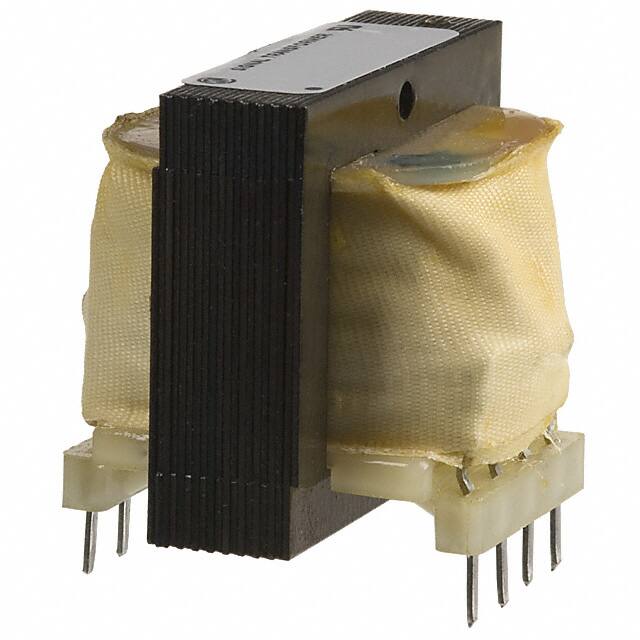

Specifications
- Additional Feature
- OPERATING FREQUENCY: 50-500 HZ
- Voltage Secondary Full Load
- Parallel 5V Series 10V
- Terminal
- PC Pin
- Montaj
- Through Hole
- Output Power
- 1W
- Yayın Yılı
- 2009
- Kurşunsuz
- Lead Free
- ECCN Kodu
- EAR99
- Output Voltage2
- 5V
- Va Rating
- 1 VA
- Genişlik
- 34.92mm
- HTS Kodu
- 8504.31.40.35
- Boyut / Ölçü
- 25.40mm Lx34.92mm W
- Terminal Stili
- PC Pin
- Voltage Isolation
- 1500Vrms
- Weight
- 0.157lb 71.21g
- Montaj Tipi
- Through Hole
- Nem Hassasiyeti (MSL)
- Not Applicable
- Uzunluk
- 25.4mm
- Max Power Dissipation
- 1W
- Fabrika Tedarik Süresi
- 18 Weeks
- Parça Durumu
- Active
- Output Voltage1
- 5V
- Yükseklik
- 21.1mm
- Center Tap
- No
- Tip
- Laminated Core
- Operating Frequency Max
- 0.5kHz
- RoHS Durumu
- ROHS3 Compliant
- Maks. Oturma Yüksekliği
- 21.08mm
- Seri
- PC
- Operating Frequencymin
- 0.05kHz
- Power Max
- 1VA
- Secondary Windings
- Dual
- Primary Windings
- Single
- Voltage Primary
- 115V
- Max Output Current
- 90mA
- Onay Kuruluşu
- UL; CSA
