Volume pricing
- 1+ pcs$130.42
- 10+ pcs$123.04
- 100+ pcs$116.08
- 500+ pcs$109.51
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

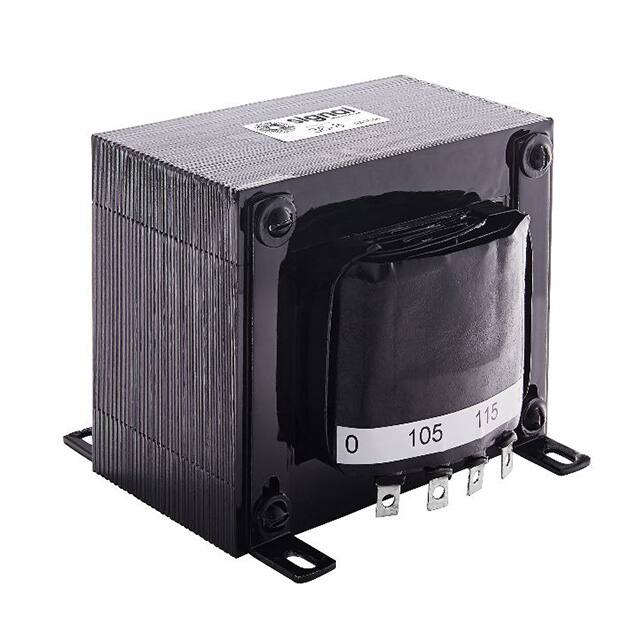

Specifications
- Voltage Isolation
- 1500Vrms
- Voltage Secondary Full Load
- Parallel 18V Series 36V
- Terminal Stili
- Solder, Quick Connect
- Max Power Dissipation
- 288W
- REACH Uyumluluk Kodu
- unknown
- Center Tap
- Yes
- Fabrika Tedarik Süresi
- 16 Weeks
- RoHS Durumu
- ROHS3 Compliant
- Output Voltage2
- 18V
- Boyut / Ölçü
- 114.30mm Lx114.30mm W
- Additional Feature
- THE TWO SECONDARIES HAVE CENTER TAPPED CONNECTIONS
- Max Output Current
- 8A
- Montaj
- Chassis Mount
- Power Max
- 288VA
- Nem Hassasiyeti (MSL)
- Not Applicable
- Primary Windings
- Single, Multiple Taps
- Parça Durumu
- Active
- Weight
- 11lbs 5kg
- Maks. Oturma Yüksekliği
- 95.30mm
- Genişlik
- 114.3mm
- Terminal
- Solder
- Primary Rating
- SINGLE 105/115/125V
- Uzunluk
- 114.3mm
- Output Voltage1
- 18V
- ECCN Kodu
- EAR99
- Voltage Primary
- 105V 115V 125V
- Tip
- Laminated Core
- Physical Dimension
- 114.3mm X 114.3mm X 95.3mm
- Montaj Tipi
- Chassis Mount
- Secondary Windings
- Dual
