Volume pricing
- 1+ pcs$18.37
- 10+ pcs$17.33
- 100+ pcs$16.35
- 500+ pcs$15.42
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

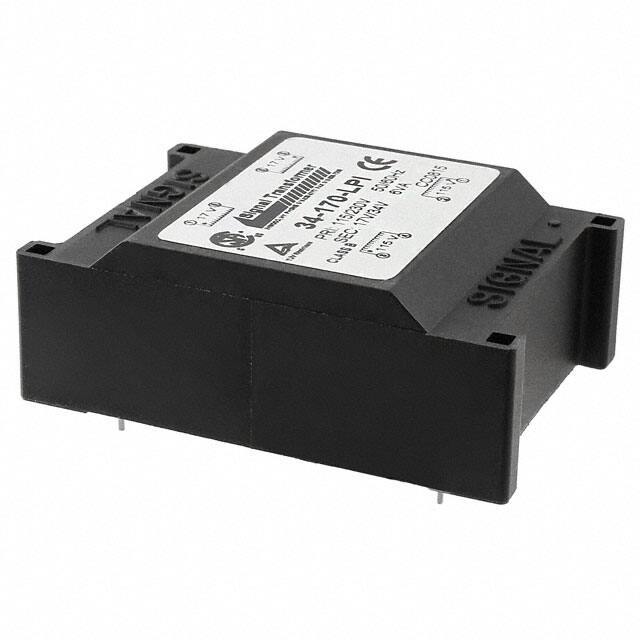

Specifications
- Voltage Primary
- 115V 230V
- Tip
- Semi-Toroidal
- Output Power
- 6W
- Onay Kuruluşu
- UL; CSA; TUV
- Va Rating
- 6 VA
- Number Of Secondary Winding
- 2
- Max Output Current
- 170mA
- Nem Hassasiyeti (MSL)
- Not Applicable
- Frekans
- 60Hz
- Max Power Dissipation
- 6W
- Terminal
- PC Pin
- Uzunluk
- 60.2mm
- Montaj
- Through Hole
- Number Of Contacts
- 8
- Kurşunsuz
- Lead Free
- RoHS Durumu
- ROHS3 Compliant
- Weight
- 0.39lb 176.9g
- Maks. Oturma Yüksekliği
- 22.70mm
- Yükseklik
- 22.7mm
- Additional Feature
- PCB MOUNTABLE
- Primary Windings
- Dual
- Parça Durumu
- Active
- Seri
- LPI
- ECCN Kodu
- EAR99
- Power Max
- 6VA
- Yayın Yılı
- 2009
- Boyut / Ölçü
- 60.20mm Lx42.10mm W
- Terminal Stili
- PC Pin
- Center Tap
- No
- Output Voltage1
- 17V
- Genişlik
- 42.1mm
- Fabrika Tedarik Süresi
- 16 Weeks
- Montaj Tipi
- Through Hole
- Voltage Secondary Full Load
- Parallel 17V Series 34V
- Physical Dimension
- 60.2mm X 42.1mm X 22.7mm
- Voltage Isolation
- 4000Vrms
