6ES71942MH500AB0

Specifications

Number Of Poles

4

1st Connector Gender

Male Pins

Ingress Protection

IP65/IP67 - Dust Tight, Water Resistant, Waterproof

Insulation Materials

PE

Assembly Configuration

Standard

2nd Connector Number Of Positions Loaded

All

Manufacturer Part

6ES71942MH500AB0

Number Of Cores

4

2nd Connector Gender

Male Pins

Usage

Industrial Environments

2nd Connector Mounting Type

Free Hanging (In-Line)

Min Ambient Temperature

-40°C

Content

1pc(s)

2nd Connector Type

Receptacle, Right Angle

2nd Connector Number Of Positions

4

1st Connector Shell Size Insert

M8

Tip

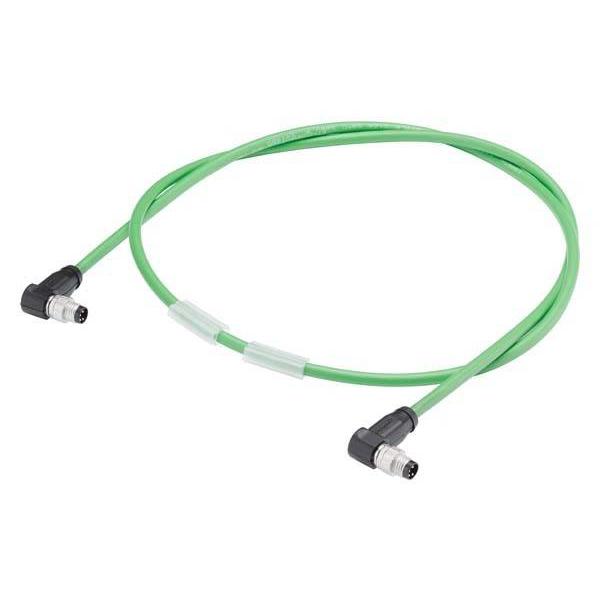

2 x M 8 plugs, angled, 4-pin, shielded

Cable Types

Round

Minimum Bend Radius

100 mm

Paket

Bulk

2nd Connector Shell Size Insert

M8

Uzunluk

5m

Conductor Material

Copper

Compatible With Details

ET-Connection M8

Ip Rating

IP65,IP67

1st Connector Number Of Positions

4

Max Ambient Temperature

+80°C

1st Connector Type

Receptacle, Right Angle

Ürün Durumu

Active

Function

PLC - PLC

Cable Material

Polyurethane (PUR)

Outer Diameter

5mm

Shielding

Shielded

1st Connector Number Of Positions Loaded

All

Renk

Green

1st Connector Mounting Type

Free Hanging (In-Line)
