Specifications
- Nominal Gerilim
- 24VDC
- Static Pressure
- 1.450 in H2O (361.2 Pa)
- Parça Durumu
- Active
- Weight
- 0.97lb 439.98g
- Onay Kuruluşu
- CSA, TUV, UL
- Rated Power
- 36W
- Genişlik
- 38mm
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Fan Type
- Tubeaxial
- Rpm
- 6400 RPM
- Rated Current
- 1.5A
- Seri

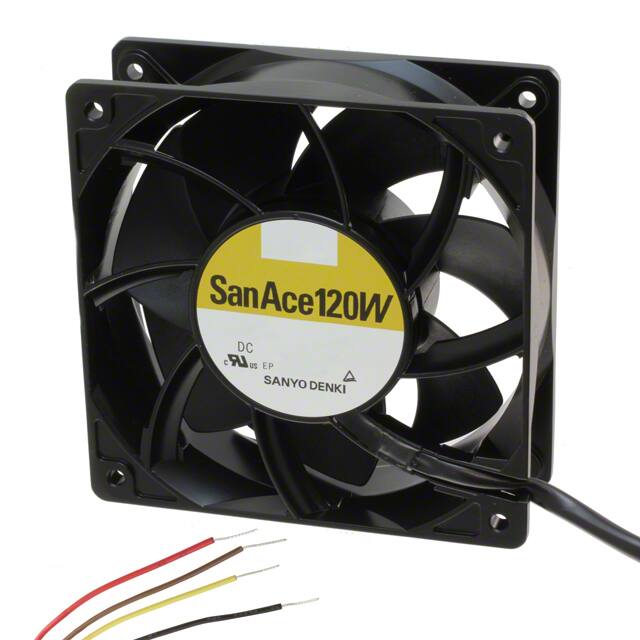

- San Ace 120W
- Bearing Type
- Ball
- Özellikler
- PWM Control, Speed Sensor (Tach)
- Boyut / Ölçü
- Square - 120mm Lx120mm H
- Noise
- 64.0 dB(A)
- Additional Feature
- APPROVALS: TUV
- Material Frame
- Aluminum
- Voltage Range
- 20.4V~27.6VDC
- Nem Hassasiyeti (MSL)
- Not Applicable
- Güç (Watt)
- 36W
- Uzunluk
- 120mm
- Material Blade
- Plastic
- Çalışma Sıcaklığı
- -4~158°F -20°C~70°C
- Terminal
- 4 Wire Leads
- Current Rating Amps
- 1.5A
- Lifetime Temp
- 60000 Hrs @ 60°C
- Fabrika Tedarik Süresi
- 16 Weeks
- REACH Uyumluluk Kodu
- unknown
- Thermal Support Device Type
- DC FAN
- RoHS Durumu
- ROHS3 Compliant
