Volume pricing
- 1+ pcs$80.66
- 10+ pcs$76.09
- 100+ pcs$71.78
- 500+ pcs$67.72
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

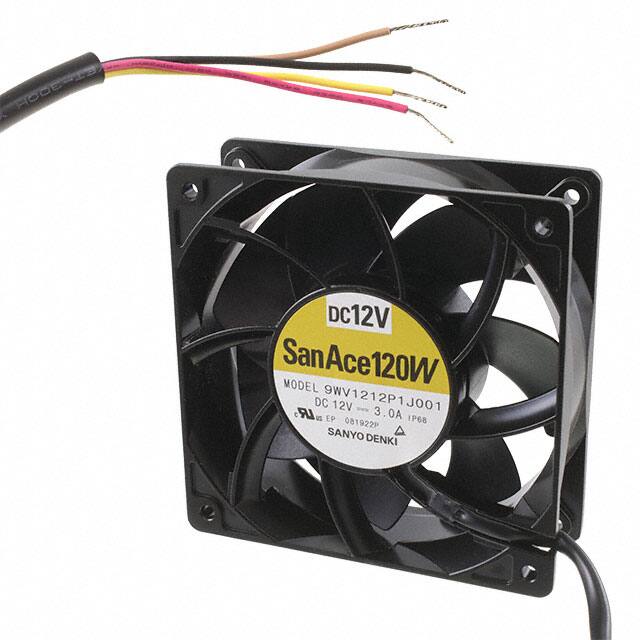

Specifications
- Nominal Gerilim
- 12VDC
- Onay Kuruluşu
- CSA, TUV, UL
- Static Pressure
- 1.450 in H2O (361.2 Pa)
- Parça Durumu
- Active
- Rated Power
- 36W
- Yayın Yılı
- 2015
- Fan Type
- Tubeaxial
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Genişlik
- 38mm
- Bearing Type
- Ball
- Seri
- San Ace 120W
- Rated Current
- 3A
- Rpm
- 6400 RPM
- Noise
- 64.0 dB(A)
- Additional Feature
- IP68, APPROVALS: UL
- Özellikler
- PWM Control, Speed Sensor (Tach)
- Boyut / Ölçü
- Square - 120mm Lx120mm H
- Material Frame
- Aluminum
- Nem Hassasiyeti (MSL)
- Not Applicable
- Güç (Watt)
- 36W
- Voltage Range
- 10.2V~13.8VDC
- Operating Supply Voltage
- 12V
- Material Blade
- Plastic
- Terminal
- 4 Wire Leads
- Çalışma Sıcaklığı
- -4~158°F -20°C~70°C
- Current Rating Amps
- 3.00A
- Yükseklik
- 120mm
- Fabrika Tedarik Süresi
- 16 Weeks
- Lifetime Temp
- 60000 Hrs @ 60°C
- Thermal Support Device Type
- DC FAN
- RoHS Durumu
- ROHS3 Compliant
