Volume pricing
- 1+ pcs$57.93
- 10+ pcs$54.65
- 100+ pcs$51.56
- 500+ pcs$48.64
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Operating Supply Voltage
- 24V
- Fan Type
- Tubeaxial
- Onay Kuruluşu
- CSA, TUV, UL
- Genişlik
- 25.00mm
- Current Rating Amps
- 0.340A
- Seri

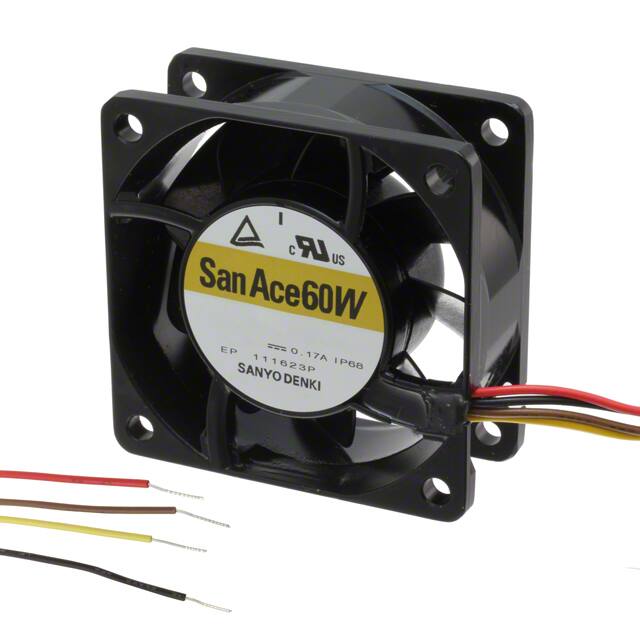

- San Ace 60W
- Material Blade
- Plastic
- Housing Material
- Aluminium
- Çalışma Sıcaklığı
- -4~158°F -20°C~70°C
- Fabrika Tedarik Süresi
- 16 Weeks
- Parça Durumu
- Active
- Weight
- 0.243lb 110.22g
- Kılıf / Paket
- Axial
- Reach Svhc
- Unknown
- Özellikler
- PWM Control, Speed Sensor (Tach)
- Nominal Gerilim
- 24VDC
- Static Pressure
- 1.204 in H2O (299.9 Pa)
- Bearing Type
- Ball
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Voltage Range
- 21.6V~26.4VDC
- Rpm
- 11000 RPM
- Noise
- 53.0 dB(A)
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Güç (Watt)
- 8.16W
- Terminal
- 4 Wire Leads
- Power Rating
- 8.16W
- Boyut / Ölçü
- Square - 60mm Lx60mm H
- Material Frame
- Aluminum
- Akım Değeri
- 340mA
- RoHS Durumu
- ROHS3 Compliant
- Lifetime Temp
- 180000 Hrs @ 60°C
- Yayın Yılı
- 2014
