Specifications
- Current Rating Amps
- 0.280A
- Operating Supply Voltage
- 24V
- Bearing Type
- Ball
- Material Blade
- Plastic
- Rpm
- 10000 RPM
- Material Frame
- Aluminum
- Onay Kuruluşu
- CSA, TUV, UL
- Fabrika Tedarik Süresi
- 16 Weeks
- Static Pressure
- 0.976 in H2O (243.0 Pa)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Akım Değeri
- 280mA
- Noise
- 52.0 dB(A)
- Fan Type
- Tubeaxial
- Boyut / Ölçü
- Square - 60mm Lx60mm H
- Yükseklik
- 60mm
- Power Rating
- 6.72W
- Reach Svhc
- Unknown
- Yayın Yılı
- 2014
- Housing Material
- Aluminium
- Çalışma Sıcaklığı
- -40~185°F -40°C~85°C
- Nominal Gerilim
- 24VDC
- Voltage Range
- 20.4V~27.6VDC
- Terminal
- 4 Wire Leads
- Thermal Support Device Type
- DC FAN
- Seri

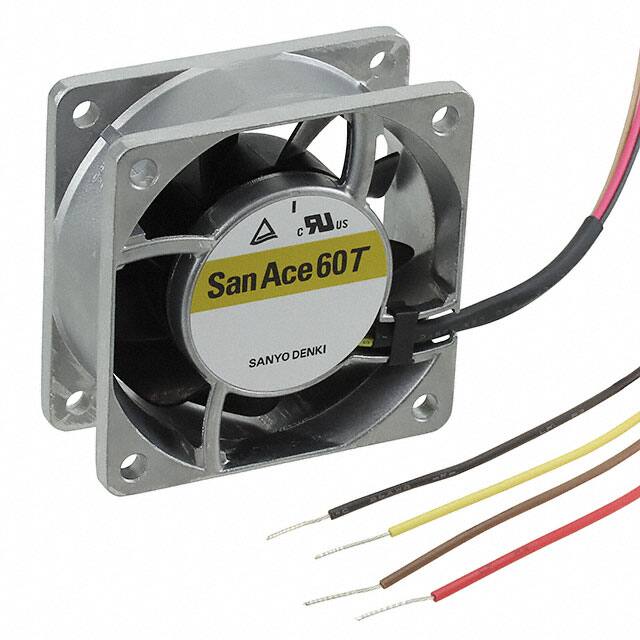

- San Ace 60T
- RoHS Durumu
- ROHS3 Compliant
- Parça Durumu
- Active
- Weight
- 0.22lb 99.79g
- Lifetime Temp
- 40000 Hrs @ 85°C
- Özellikler
- PWM Control, Speed Sensor (Tach)
- Kılıf / Paket
- Axial
