Specifications
- Weight
- 0.121lb 54.88g
- Additional Feature
- APPROVAL: UL
- Özellikler
- PWM Control, Speed Sensor (Tach)
- Housing Material
- Aluminium
- Static Pressure
- 1.666 in H2O (415.0 Pa)
- Parça Durumu
- Active
- Ambalaj
- Bulk
- Onay Kuruluşu
- CSA, TUV, UL
- Nominal Gerilim
- 12VDC
- Genişlik
- 28mm
- Thermal Support Device Type
- DC FAN
- Yükseklik
- 40mm
- Current Rating Amps
- 0.840A
- Seri

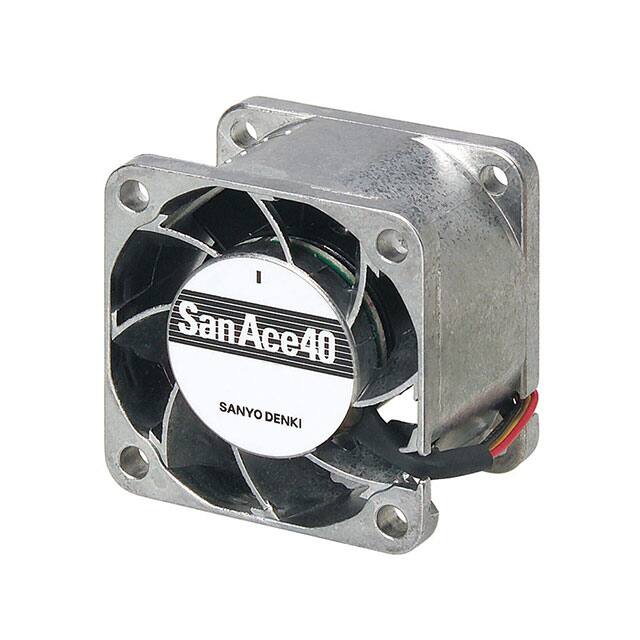

- San Ace 40
- Rpm
- 16500 RPM
- Çalışma Sıcaklığı
- -4~140°F -20°C~60°C
- Fan Type
- Tubeaxial
- Material Frame
- Aluminum
- Material Blade
- Plastic
- Fabrika Tedarik Süresi
- 16 Weeks
- Boyut / Ölçü
- Square - 40mm Lx40mm H
- RoHS Durumu
- ROHS3 Compliant
- Lifetime Temp
- 40000 Hrs @ 60°C
- Voltage Range
- 10.8V~13.2VDC
- Power Rating
- 10.08W
- Bearing Type
- Ball
- REACH Uyumluluk Kodu
- unknown
- Akım Değeri
- 840mA
- Noise
- 58.0 dB(A)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal
- 4 Wire Leads
