Volume pricing
- 1+ pcs$41.95
- 10+ pcs$39.57
- 100+ pcs$37.33
- 500+ pcs$35.22
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Power Rating
- 5.28W
- Bearing Type
- Ball
- RoHS Durumu
- ROHS3 Compliant
- Voltage Range
- 10.2V~12.6VDC
- Lifetime Temp
- Varies Based on Temperature
- Operating Supply Voltage
- 12V
- Boyut / Ölçü
- Square - 80mm Lx80mm H
- Fabrika Tedarik Süresi
- 16 Weeks
- Material Blade
- Plastic
- Material Frame
- Plastic
- Fan Type
- Tubeaxial
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Terminal
- 4 Wire Leads
- Kılıf / Paket
- Axial
- Güç (Watt)
- 7.2W
- Noise
- 48.0 dB(A)
- Akım Değeri
- 600mA
- Parça Durumu
- Active
- Static Pressure
- 0.700 in H2O (174.4 Pa)
- Housing Material
- Plastic
- Özellikler
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Weight
- 0.243lb 110.22g
- Uzunluk
- 80mm
- Rpm
- 7400 RPM
- Seri

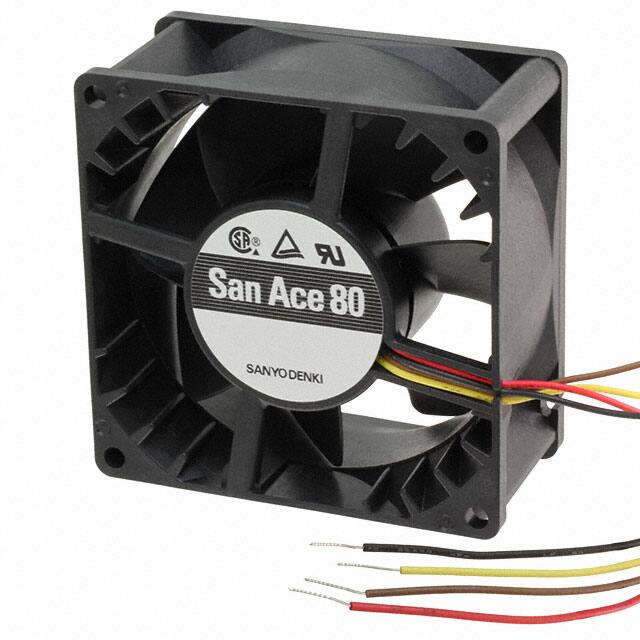

- San Ace 80
- Çalışma Sıcaklığı
- -4~158°F -20°C~70°C
- Current Rating Amps
- 0.600A
- Reach Svhc
- Unknown
- Yükseklik
- 80mm
- Yayın Yılı
- 2014
- Genişlik
- 25.00mm
- Nominal Gerilim
- 12VDC
- Onay Kuruluşu
- CSA, TUV, UL
