Volume pricing
- 1+ pcs$39.83
- 10+ pcs$37.58
- 100+ pcs$35.45
- 500+ pcs$33.44
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Uzunluk
- 97.1mm
- Additional Feature
- APPROVALS: UL
- Rpm
- 5750 RPM
- Özellikler
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Weight
- 0.419lb 190.06g
- Rated Current
- 1.8A
- Boyut / Ölçü
- Rectangular/Rounded - 97.1mm Lx95mm H
- Nominal Gerilim
- 12VDC
- Seri

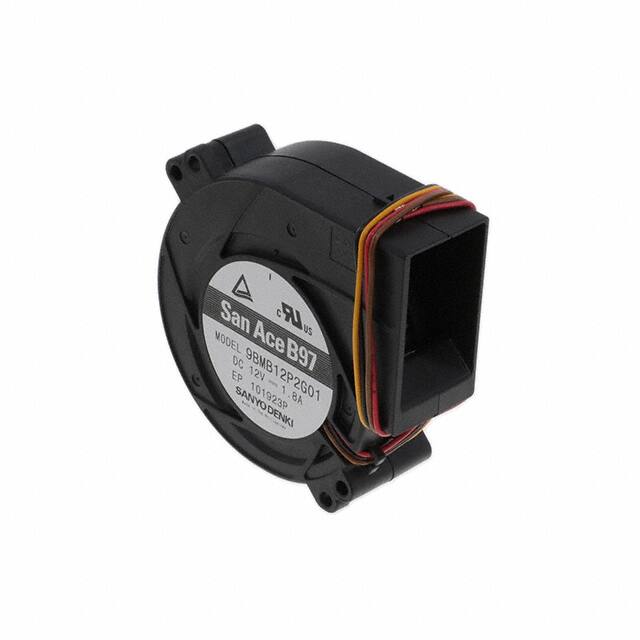

- San Ace B97
- Genişlik
- 33mm
- Voltage Range
- 10.2V~13.8VDC
- Current Rating Amps
- 1.80A
- Güç (Watt)
- 21.6W
- Rated Power
- 21.6W
- Fabrika Tedarik Süresi
- 16 Weeks
- Fan Type
- Blower
- Nem Hassasiyeti (MSL)
- Not Applicable
- Material Frame
- Plastic
- Parça Durumu
- Active
- Noise
- 61.0 dB(A)
- Bearing Type
- Ball
- Static Pressure
- 3.050 in H2O (759.7 Pa)
- Lifetime Temp
- 40000 Hrs @ 60°C
- RoHS Durumu
- ROHS3 Compliant
- Onay Kuruluşu
- CSA, TUV, UL
- Çalışma Sıcaklığı
- -4~158°F -20°C~70°C
- Terminal
- 4 Wire Leads
