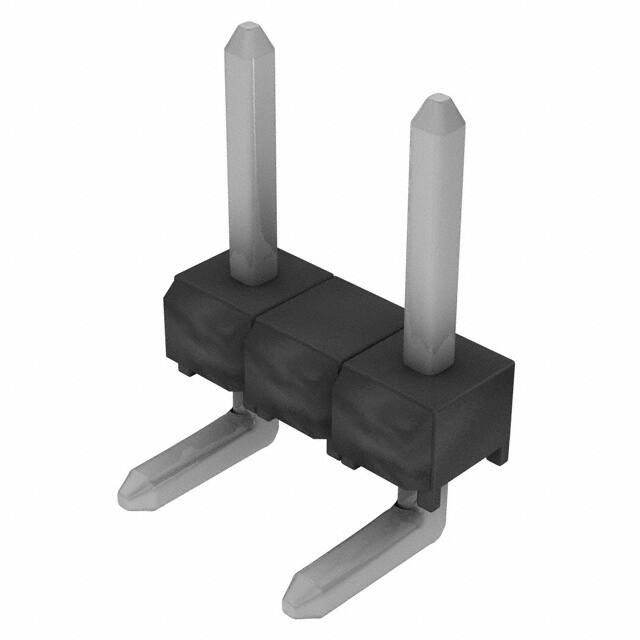

TSW-202-08-T-S-RA

Specifications

Gender

Male

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.090 2.29mm

Uzunluk

7.62mm

Number Of Pcb Rows

1

Parça Durumu

Active

Pitch Mating

0.200 5.08mm

Iec Conformance

NO

Seri

TSW

Max Current Rating

7.6A

Reliability

COMMERCIAL

JESD-609 Kodu

e3

Insulation Height

0.119 3.02mm

Shrouding

Unshrouded

Housing Material

Polyester

Fabrika Tedarik Süresi

6 Weeks

Contact Shape

Square

Connector Type

Header

Lead Pitch

5.08mm

Radyasyon Dayanımı

No

Montaj

Through Hole

Orientation

Right Angle

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull

Additional Feature

E.L.P.

Housing Color

Black

Yayın Yılı

2005

Reference Standard

UL

Mil Conformance

NO

Pozisyon Sayısı

2

Filter Feature

NO

Contact Lengthmating

0.230 5.84mm

Material Flammability Rating

UL94 V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

Number Of Positions Loaded

All

Terminal

Solder

Number Of Conductors

ONE

Çalışma Sıcaklığı

-55°C~105°C

Din Conformance

NO

Sıra Sayısı

1
