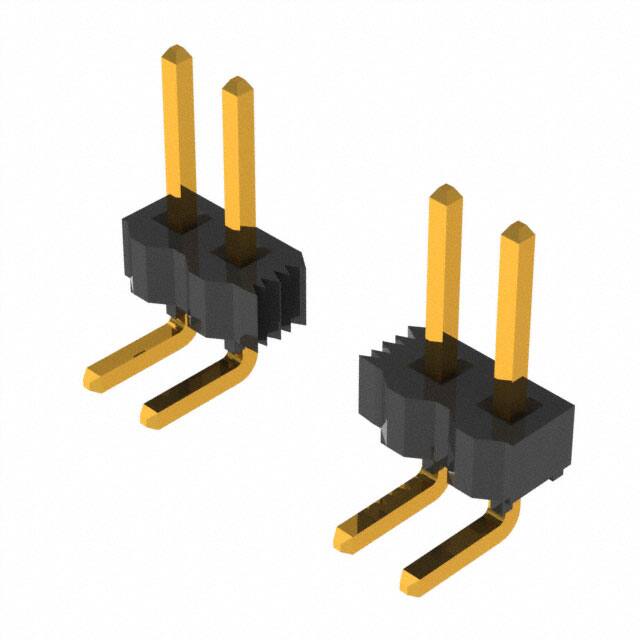

TSW-150-08-G-S-RA

Specifications

Reach Svhc

No SVHC

Contact Finish Mating

Gold

Housing Color

Black

Yayın Yılı

2005

Mixed Contacts

NO

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole, Right Angle

Option

GENERAL PURPOSE

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

10.0μin 0.25μm

Ambalaj

Bulk

Fastening Type

Push-Pull

Yükseklik

3.02mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Lead Pitch

2.54mm

Style

Board to Board or Cable

Montaj

Through Hole

Kurşunsuz

Lead Free

Connector Type

Header

Contact Shape

Square

Çalışma Sıcaklığı

-55°C~125°C

Number Of Positions Loaded

All

Terminal

Solder

Contact Finish Thickness Post

3.00μin 0.076μm

Din Conformance

NO

Shrouding

Unshrouded

Housing Material

Plastic

Fabrika Tedarik Süresi

6 Weeks

Sıra Sayısı

1

Insulation Height

0.119 3.02mm

Pozisyon Sayısı

50

Filter Feature

NO

Seri

TSW

Material Flammability Rating

UL94 V-0

Insulation Materials

Polybutylene Terephthalate (PBT)

JESD-609 Kodu

e4

Contact Lengthmating

0.230 5.84mm

Pitch Mating

0.100 2.54mm

Mil Conformance

NO
