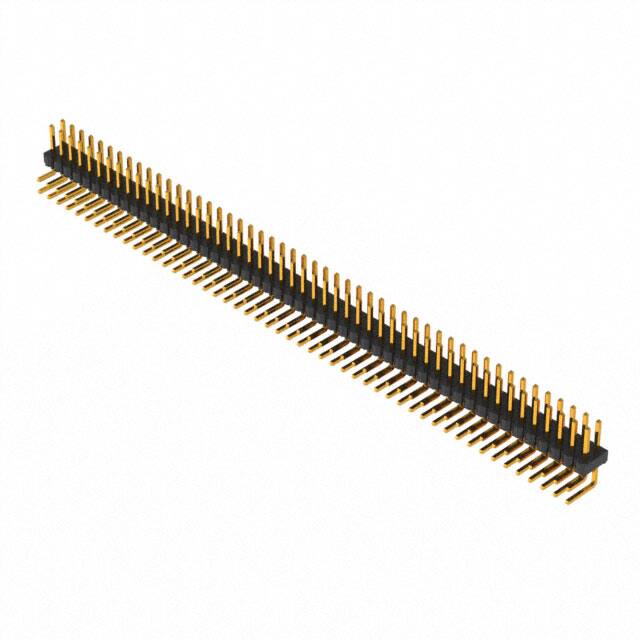

TSW-150-08-G-D-RA

Specifications

Din Conformance

NO

Sıra Sayısı

2

Çalışma Sıcaklığı

-55°C~125°C

Number Of Positions Loaded

All

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Material Flammability Rating

UL94 V-0

Contact Lengthmating

0.230 5.84mm

Pozisyon Sayısı

100

Filter Feature

NO

Row Spacing Mating

0.100 (2.54mm)

Mil Conformance

NO

Nominal Gerilim

450V

Akım Değeri

7.6A

Mixed Contacts

NO

Reach Svhc

No SVHC

Contact Finish Mating

Gold

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole, Right Angle

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

10.0μin 0.25μm

Contact Materials

Phosphor Bronze

Max Voltage Rating Ac

450V

Style

Board to Board or Cable

Contact Type

Male Pin

Depth

12.44mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Shrouding

Unshrouded

Housing Material

Polyester

Contact Finish Thickness Post

3.00μin 0.076μm

Fabrika Tedarik Süresi

3 Weeks

Insulation Height

0.219 5.56mm

JESD-609 Kodu

e4

Seri

TSW

Max Current Rating

7.6A

Iec Conformance

NO

Pitch Mating

0.100 2.54mm

Uzunluk

127mm

Parça Durumu

Active
