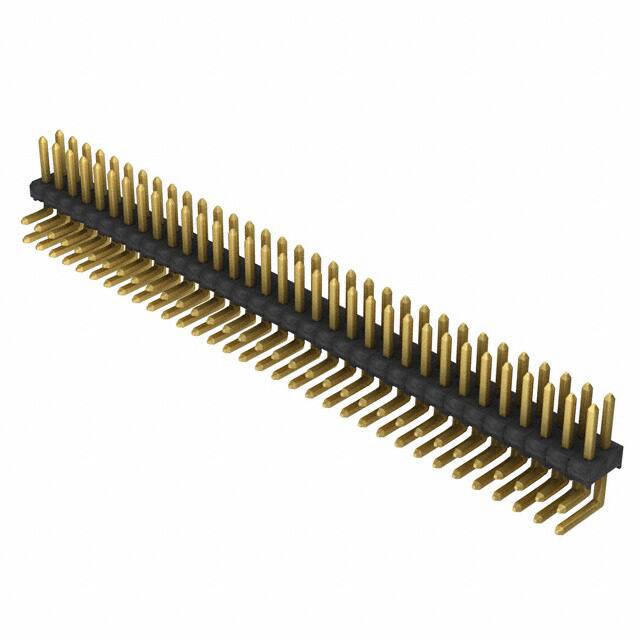

TSW-133-08-G-D-RA

Specifications

Insulation Height

0.219 5.56mm

Housing Material

Plastic

Shrouding

Unshrouded

Din Conformance

NO

Contact Finish Thickness Post

3.00μin 0.076μm

Sıra Sayısı

2

Terminal

Solder

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.230 5.84mm

Insulation Materials

Polybutylene Terephthalate (PBT)

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e4

Pozisyon Sayısı

66

Filter Feature

NO

Seri

TSW

Iec Conformance

NO

Genişlik

2.54mm

Uzunluk

83.8mm

Mil Conformance

NO

Parça Durumu

Active

Row Spacing Mating

0.100 (2.54mm)

Pitch Mating

0.100 2.54mm

Gender

Male

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.090 2.29mm

Mixed Contacts

NO

Yayın Yılı

2005

Contact Finish Mating

Gold

Housing Color

Black

Reach Svhc

No SVHC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Yükseklik

5.56mm

Fastening Type

Push-Pull

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

10.0μin 0.25μm

Montaj Tipi

Through Hole, Right Angle

Kurşunsuz Kodu

yes

Option

GENERAL PURPOSE
