Volume pricing
- 1+ pcs$2.24
- 10+ pcs$2.12
- 100+ pcs$2.00
- 500+ pcs$1.88
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

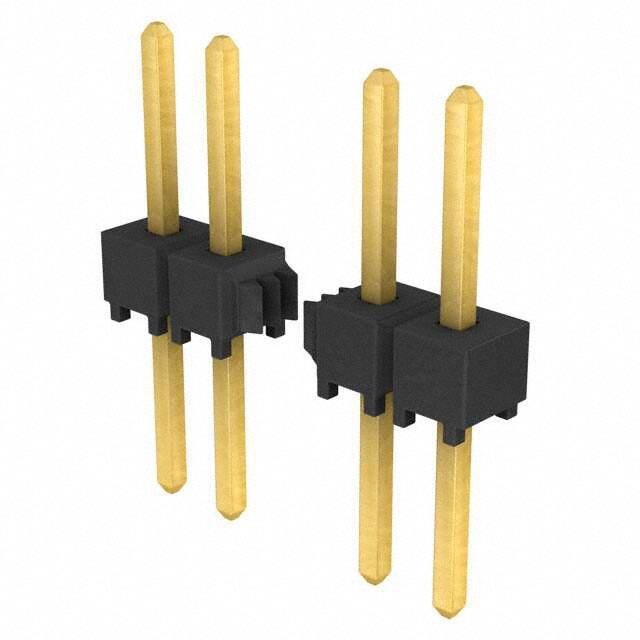

Specifications
- Kurşunsuz Kodu
- yes
- JESD-609 Kodu
- e4
- Housing Material
- Plastic
- Contact Type
- Male Pin
- Genişlik
- 2.54mm
- Seri
- TSW
- Terminal
- Solder
- Ul Flammability Code
- 94V-0
- Insulation Materials
- Polybutylene Terephthalate (PBT)
- RoHS Durumu
- ROHS3 Compliant
- Gender
- Male
- Radyasyon Dayanımı
- No
- Insulation Height
- 0.100 2.54mm
- Additional Feature
- E.L.P.
- Number Of Positions Loaded
- All
- Fabrika Tedarik Süresi
- 1 Weeks
- Contact Finish Thickness Post
- 3.00μin 0.076μm
- Reach Svhc
- No SVHC
- Option
- GENERAL PURPOSE
- Connector Type
- Header
- Iec Conformance
- NO
- Contact Shape
- Square
- Montaj
- Through Hole
- Contact Materials
- Phosphor Bronze
- Contact Finish Mating
- Gold
- Yükseklik
- 2.54mm
- Çalışma Sıcaklığı
- -55°C~125°C
- Din Conformance
- NO
- Style
- Board to Board or Cable
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Pitch Mating
- 0.100 2.54mm
- Shrouding
- Unshrouded
- Uzunluk
- 50.8mm
- Fastening Type
- Push-Pull
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- Contact Length Post
- 0.126 3.20mm
- Mixed Contacts
- NO
- Lead Pitch
- 2.54mm
- Pozisyon Sayısı
- 20
- Contact Lengthmating
- 0.230 5.84mm
