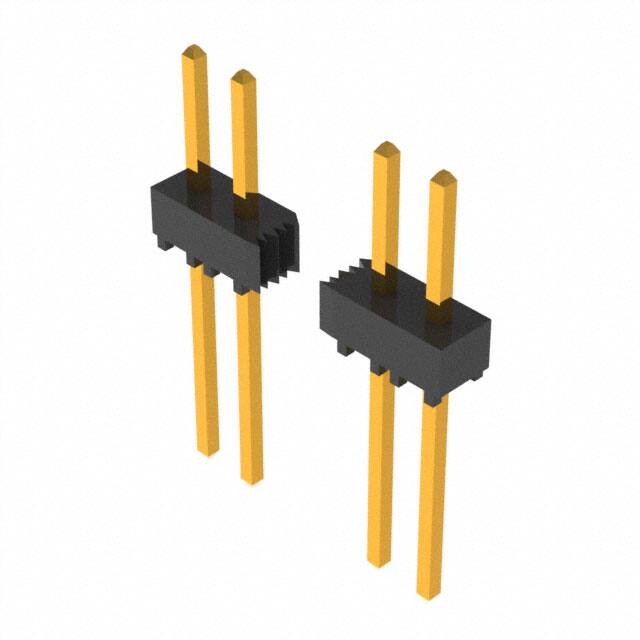

TSW-108-09-G-S

Specifications

Shrouding

Unshrouded

Max Current Rating

7.6A

Fastening Type

Push-Pull

Contact Length Post

0.400 10.16mm

Uzunluk

20.32mm

Contact Lengthmating

0.230 5.84mm

Overall Contact Length

0.730 18.54mm

Mil Conformance

NO

Pozisyon Sayısı

8

Mixed Contacts

NO

Lead Pitch

2.54mm

Number Of Conductors

ONE

Parça Durumu

Active

Ambalaj

Bulk

Filter Feature

NO

Depth

2.54mm

Material Flammability Rating

UL94 V-0

Insulation Color

Black

Yayın Yılı

2005

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Through Hole

Sıra Sayısı

1

Reliability

COMMERCIAL

JESD-609 Kodu

e4

Housing Material

Polyester

Kurşunsuz Kodu

yes

Contact Type

Male Pin

Seri

TSW

Terminal

Solder

Number Of Pcb Rows

1

Insulation Materials

Polybutylene Terephthalate (PBT)

Insulation Height

0.100 2.54mm

Radyasyon Dayanımı

No

Reference Standard

UL

Gender

Male

RoHS Durumu

ROHS3 Compliant

Orientation

Straight

Fabrika Tedarik Süresi

3 Weeks

Number Of Positions Loaded

All

Iec Conformance

NO
