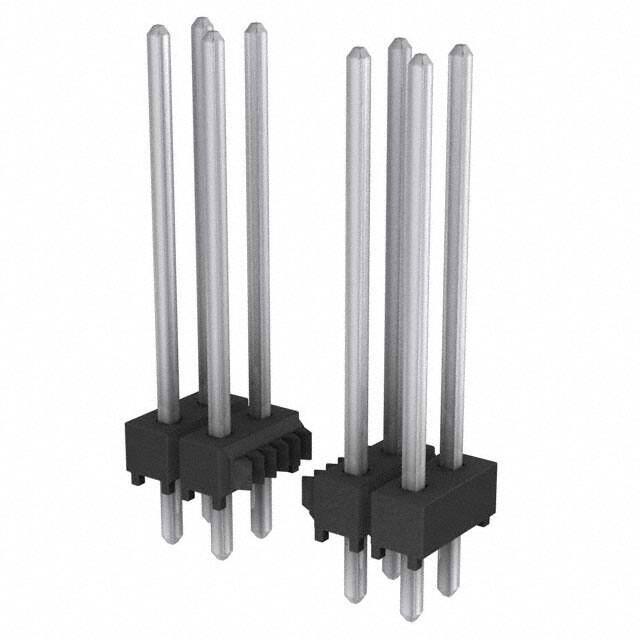

TSW-107-15-T-D

Specifications

Ambalaj

Bulk

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Depth

5.08mm

Additional Feature

E.L.P.

RoHS Durumu

ROHS3 Compliant

Lead Pitch

2.54mm

Contact Length Post

0.110 2.79mm

Gender

Male

Max Current Rating

7.6A

Contact Lengthmating

0.520 13.21mm

Çalışma Sıcaklığı

-55°C~105°C

Contact Finish Mating

Tin

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Mating Contact Pitch

0.1 inch

Option

GENERAL PURPOSE

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Filter Feature

NO

Shrouding

Unshrouded

Yayın Yılı

2005

Contact Type

Male Pin

Insulation Height

0.100 2.54mm

Overall Contact Length

0.730 18.54mm

Uzunluk

17.78mm

Iec Conformance

NO

Number Of Conductors

ONE

Montaj Tipi

Through Hole

Pitch Mating

0.100 2.54mm

Sıra Sayısı

2

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Number Of Pcb Rows

2

Mil Conformance

NO

Style

Board to Board or Cable

Row Spacing Mating

0.100 (2.54mm)

Max Voltage Rating Ac

550V

Number Of Positions Loaded

All

Kurşunsuz Kodu

yes
