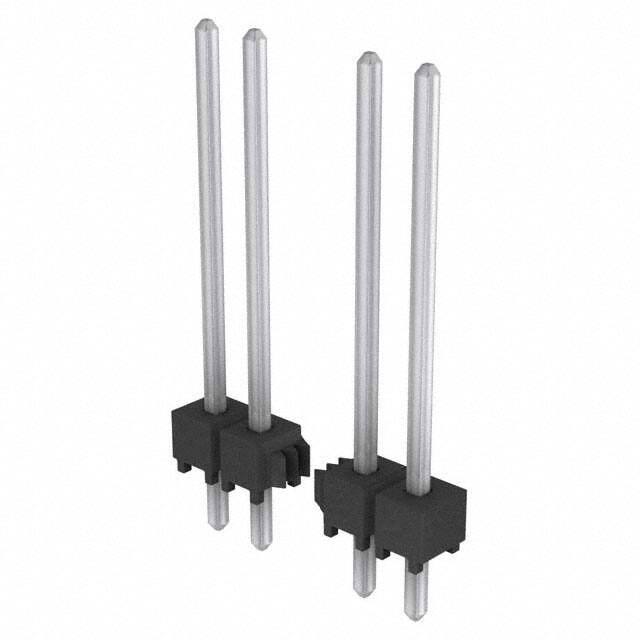

TSW-106-17-T-S

Specifications

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Housing Material

Plastic

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Additional Feature

E.L.P.

Ambalaj

Bulk

Genişlik

2.54mm

Yükseklik

2.54mm

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Çalışma Sıcaklığı

-55°C~105°C

Contact Lengthmating

0.620 15.75mm

Contact Finish Mating

Tin

Contact Length Post

0.110 2.79mm

Lead Pitch

2.54mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Number Of Conductors

ONE

Iec Conformance

NO

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Uzunluk

15.24mm

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Sıra Sayısı

1

Number Of Pcb Rows

1

Pitch Mating

0.100 2.54mm

Shrouding

Unshrouded

Filter Feature

NO

Insulation Height

0.100 2.54mm

Ul Flammability Code

94V-0

Contact Type

Male Pin

Overall Contact Length

0.830 21.08mm

Yayın Yılı

2005

Montaj

Through Hole

Connector Type

Header

Housing Color

Black

Reliability

COMMERCIAL

Fastening Type

Push-Pull
