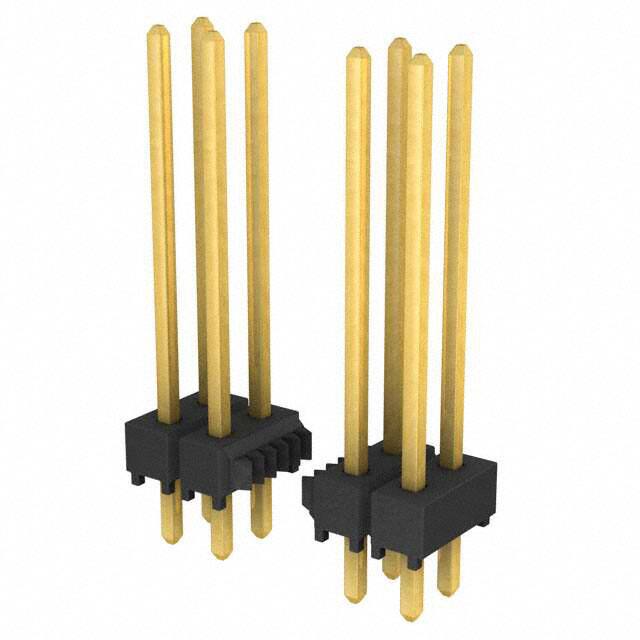

TSW-106-17-G-D

Specifications

Reliability

COMMERCIAL

Fastening Type

Push-Pull

Contact Shape

Square

Din Conformance

NO

Montaj

Through Hole

Connector Type

Header

Body Depth

0.1 inch

Housing Color

Black

Kurşunsuz Kodu

yes

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Row Spacing Mating

0.100 (2.54mm)

Radyasyon Dayanımı

No

Number Of Positions Loaded

All

Style

Board to Board or Cable

Mil Conformance

NO

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

12

Seri

TSW

Parça Durumu

Active

Body Breadth

0.1 inch

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Plating Thickness

10μin

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Mating Contact Pitch

0.1 inch

Housing Material

Plastic

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.620 15.75mm

Contact Finish Mating

Gold

Lead Pitch

2.54mm

Contact Length Post

0.110 2.79mm

RoHS Durumu

ROHS3 Compliant

Gender

Male

Additional Feature

E.L.P.

Ambalaj

Bulk

Genişlik

5.08mm

Yükseklik

2.54mm
