Volume pricing
- 1+ pcs$0.58
- 10+ pcs$0.55
- 100+ pcs$0.52
- 500+ pcs$0.49
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

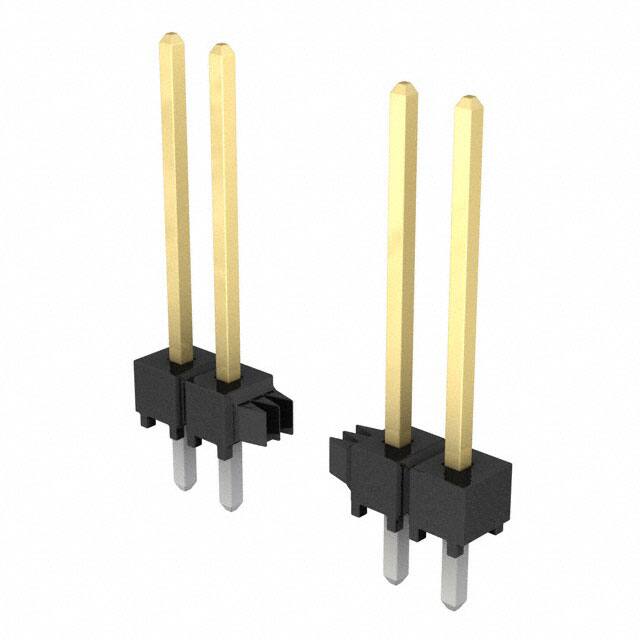

Specifications
- Connector Type
- Header
- Fastening Type
- Push-Pull
- Contact Shape
- Square
- Din Conformance
- NO
- Style
- Board to Board or Cable
- Mil Conformance
- NO
- Number Of Positions Loaded
- All
- Max Voltage Rating Ac
- 550V
- Radyasyon Dayanımı
- No
- Kurşunsuz Kodu
- yes
- Contact Finish Post
- Tin
- Parça Durumu
- Active
- Seri
- TSW
- Pozisyon Sayısı
- 6
- Contact Materials
- Phosphor Bronze
- Fabrika Tedarik Süresi
- 3 Weeks
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Orientation
- Straight
- Mixed Contacts
- NO
- Housing Material
- Polyester
- Material Flammability Rating
- UL94 V-0
- Option
- GENERAL PURPOSE
- Insulation Color
- Black
- Terminal
- Solder
- Insulation Materials
- Polybutylene Terephthalate (PBT)
- Ambalaj
- Bulk
- Additional Feature
- E.L.P.
- Depth
- 2.54mm
- Gender
- Male
- Max Current Rating
- 7.6A
- Lead Pitch
- 2.54mm
- Contact Length Post
- 0.110 2.79mm
- RoHS Durumu
- ROHS3 Compliant
- Contact Finish Mating
- Gold
- Çalışma Sıcaklığı
- -55°C~125°C
- Contact Lengthmating
- 0.520 13.21mm
- Uzunluk
- 15.24mm
- Montaj Tipi
- Through Hole
- Iec Conformance
- NO
- Pitch Mating
- 0.100 2.54mm
