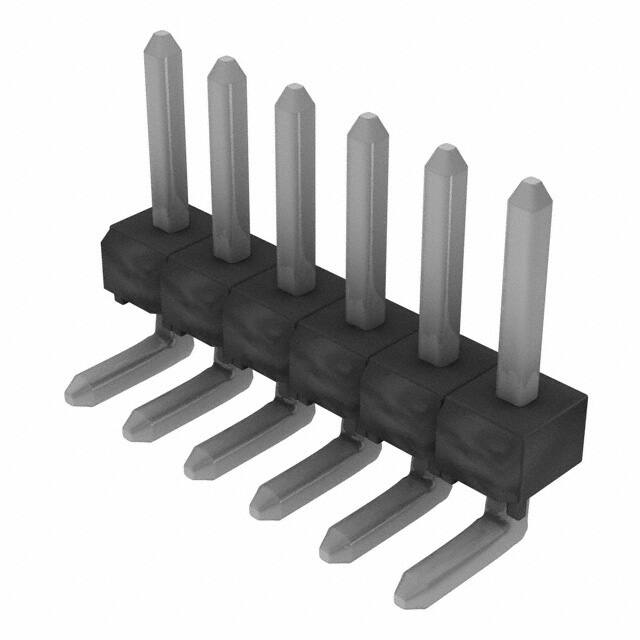

TSW-106-08-T-S-RA

Specifications

RoHS Durumu

ROHS3 Compliant

Lead Pitch

2.54mm

Contact Length Post

0.090 2.29mm

Gender

Male

Max Current Rating

7.6A

Çalışma Sıcaklığı

-55°C~105°C

Contact Lengthmating

0.230 5.84mm

Contact Finish Mating

Tin

Genişlik

2.54mm

Ambalaj

Bulk

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Depth

9.9mm

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Option

GENERAL PURPOSE

Yayın Yılı

2005

Contact Type

Male Pin

Insulation Height

0.119 3.02mm

Filter Feature

NO

Shrouding

Unshrouded

Pitch Mating

0.100 2.54mm

Sıra Sayısı

1

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Number Of Pcb Rows

1

Uzunluk

15.24mm

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole, Right Angle

Radyasyon Dayanımı

No

Max Voltage Rating Ac

450V

Number Of Positions Loaded

All

Kurşunsuz Kodu

yes

Mil Conformance

NO

Style

Board to Board or Cable

Din Conformance

NO
