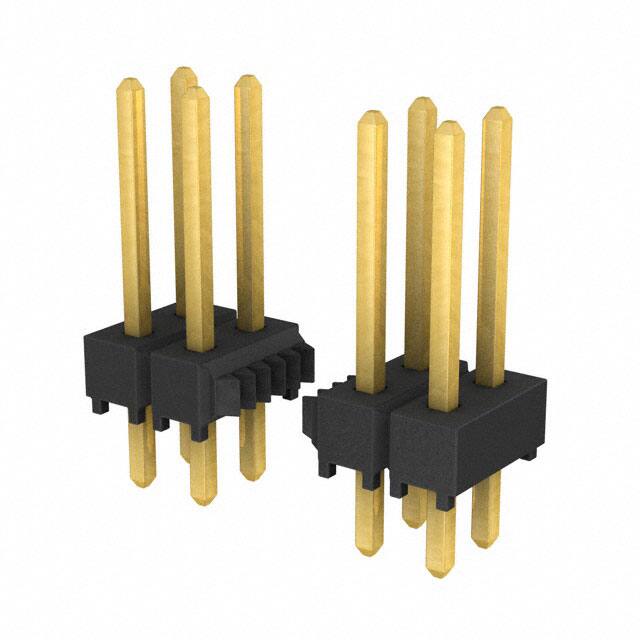

TSW-105-14-G-D

Specifications

Shrouding

Unshrouded

Contact Finish Thickness Mating

10.0μin 0.25μm

Filter Feature

NO

Contact Type

Male Pin

Insulation Height

0.100 2.54mm

Ul Flammability Code

94V-0

Overall Contact Length

0.530 13.46mm

Yayın Yılı

2005

Iec Conformance

NO

Number Of Conductors

ONE

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

Uzunluk

12.7mm

Sıra Sayısı

2

JESD-609 Kodu

e4

Reach Svhc

No SVHC

Number Of Pcb Rows

2

Pitch Mating

0.100 2.54mm

Depth

5.08mm

Additional Feature

E.L.P.

Genişlik

5.08mm

Ambalaj

Bulk

Insulation Materials

Polybutylene Terephthalate (PBT)

Terminal

Solder

Contact Finish Thickness Post

3.00μin 0.076μm

Çalışma Sıcaklığı

-55°C~125°C

Contact Lengthmating

0.320 8.13mm

Contact Finish Mating

Gold

RoHS Durumu

ROHS3 Compliant

Lead Pitch

2.54mm

Contact Length Post

0.110 2.79mm

Gender

Male

Max Current Rating

7.6A

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Housing Material

Polyester

Mating Contact Pitch

0.1 inch

Reference Standard

UL

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

0 Weeks
