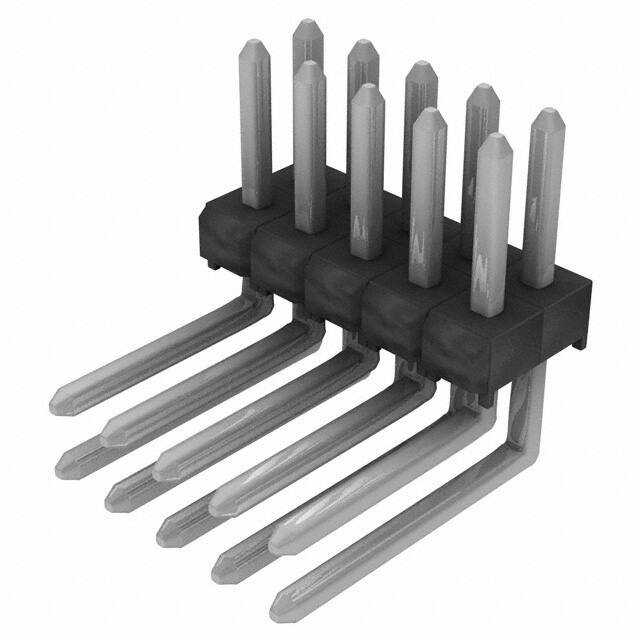

TSW-105-09-T-D-RA

Specifications

Reference Standard

UL

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Mating Contact Pitch

0.1 inch

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Max Current Rating

7.6A

Gender

Male

RoHS Durumu

ROHS3 Compliant

Lead Pitch

2.54mm

Contact Length Post

0.290 7.37mm

Contact Finish Mating

Tin

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~105°C

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Ambalaj

Bulk

Pcb Contact Row Spacing

5.08 mm

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

2

Sıra Sayısı

2

Reach Svhc

No SVHC

JESD-609 Kodu

e3

ECCN Kodu

EAR99

Montaj Tipi

Through Hole, Right Angle

Iec Conformance

NO

Number Of Conductors

ONE

Yayın Yılı

2005

Contact Type

Male Pin

Insulation Height

0.219 5.56mm

Filter Feature

NO

Shrouding

Unshrouded

Din Conformance

NO

Contact Shape

Square

Fastening Type

Push-Pull

Reliability

COMMERCIAL

Body Depth

0.1 inch

Connector Type

Header

Montaj

Through Hole

Number Of Positions Loaded

All
