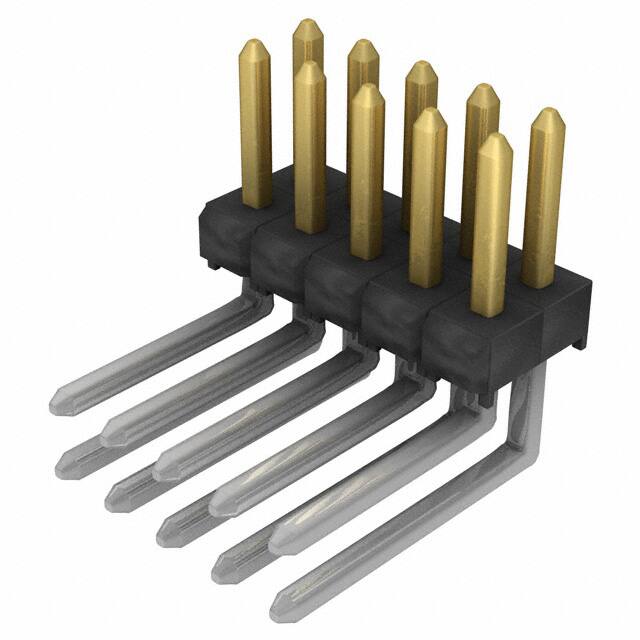

TSW-105-09-S-D-RA

Specifications

Number Of Positions Loaded

All

Row Spacing Mating

0.100 (2.54mm)

Kurşunsuz Kodu

yes

Mil Conformance

NO

Style

Board to Board or Cable

Din Conformance

NO

Fastening Type

Push-Pull

Contact Shape

Square

Reliability

COMMERCIAL

Body Depth

0.1 inch

Connector Type

Header

Montaj

Through Hole

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Plating Thickness

30μin

Fabrika Tedarik Süresi

3 Weeks

Pozisyon Sayısı

10

Contact Materials

Phosphor Bronze

Contact Finish Post

Tin

Body Breadth

0.1 inch

Parça Durumu

Active

Seri

TSW

RoHS Durumu

ROHS3 Compliant

Contact Length Post

0.290 7.37mm

Contact Finish Mating

Gold

Contact Lengthmating

0.230 5.84mm

Çalışma Sıcaklığı

-55°C~125°C

Terminal

Solder

Insulation Materials

Polybutylene Terephthalate (PBT)

Ambalaj

Bulk

Reference Standard

UL

Insulation Color

Black

Pcb Contact Pattern

RECTANGULAR

Mating Contact Pitch

0.1 inch

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Yayın Yılı

2005

Contact Type

Male Pin

Insulation Height

0.219 5.56mm

Filter Feature

NO
